Connector Views

Connection Terminals For SRS AB6.2 Sensor Module Sensor module connectors

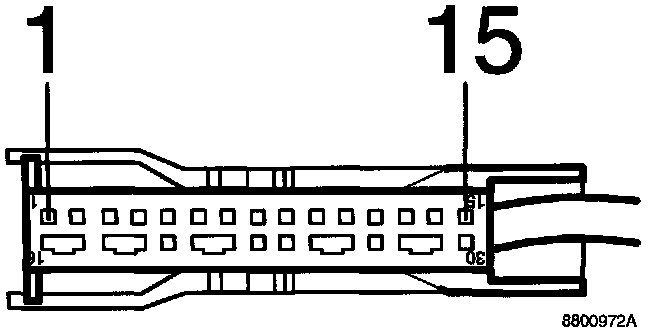

The figure shows the SRS sensor module connector.




Table

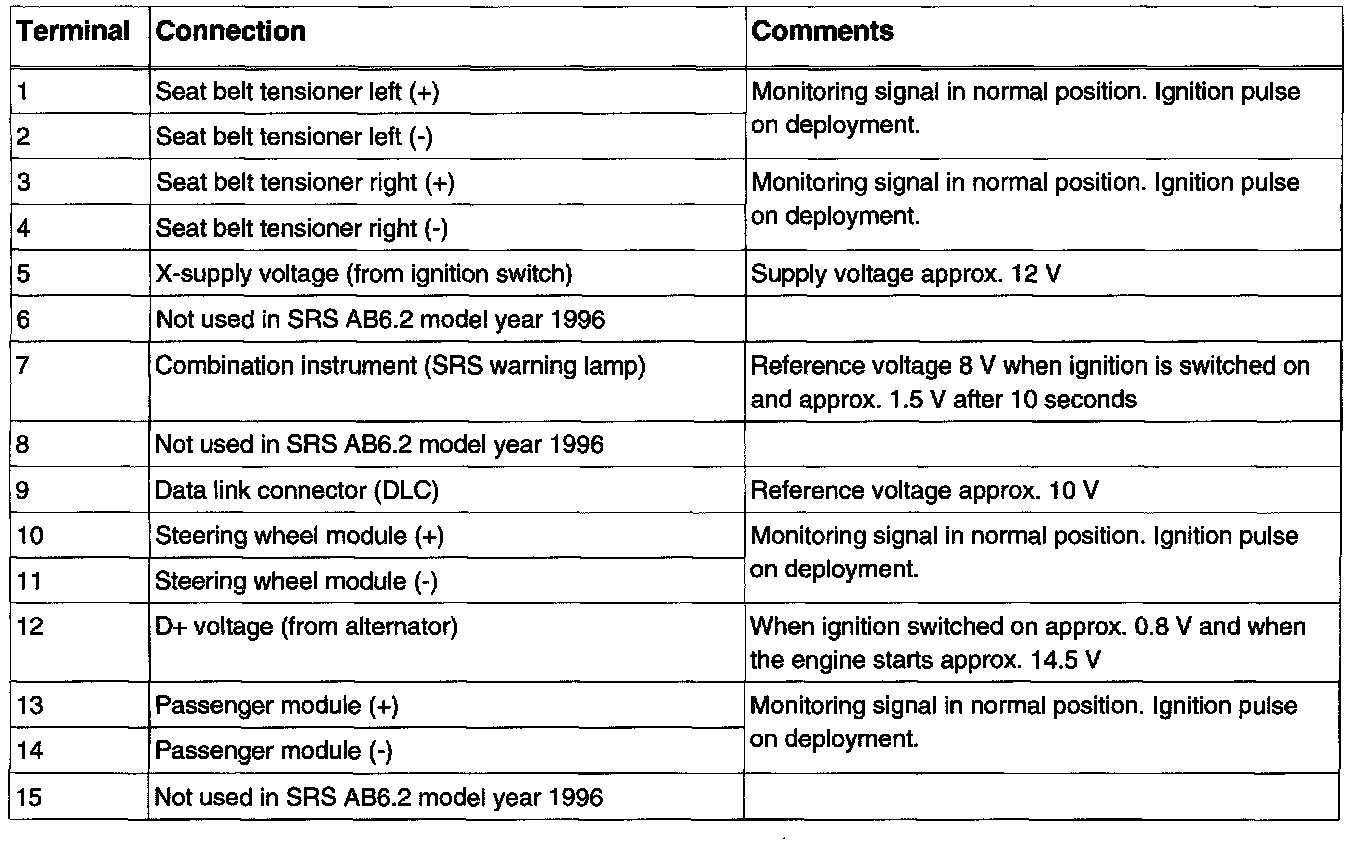

The table shows the SRS sensor module terminal numbers to which the various components of the SRS system are connected.
