Signal Table With Test Points

NOTE: All readings refer to 0 Volt, i.e. car ground.

Signal Table With Test Points:

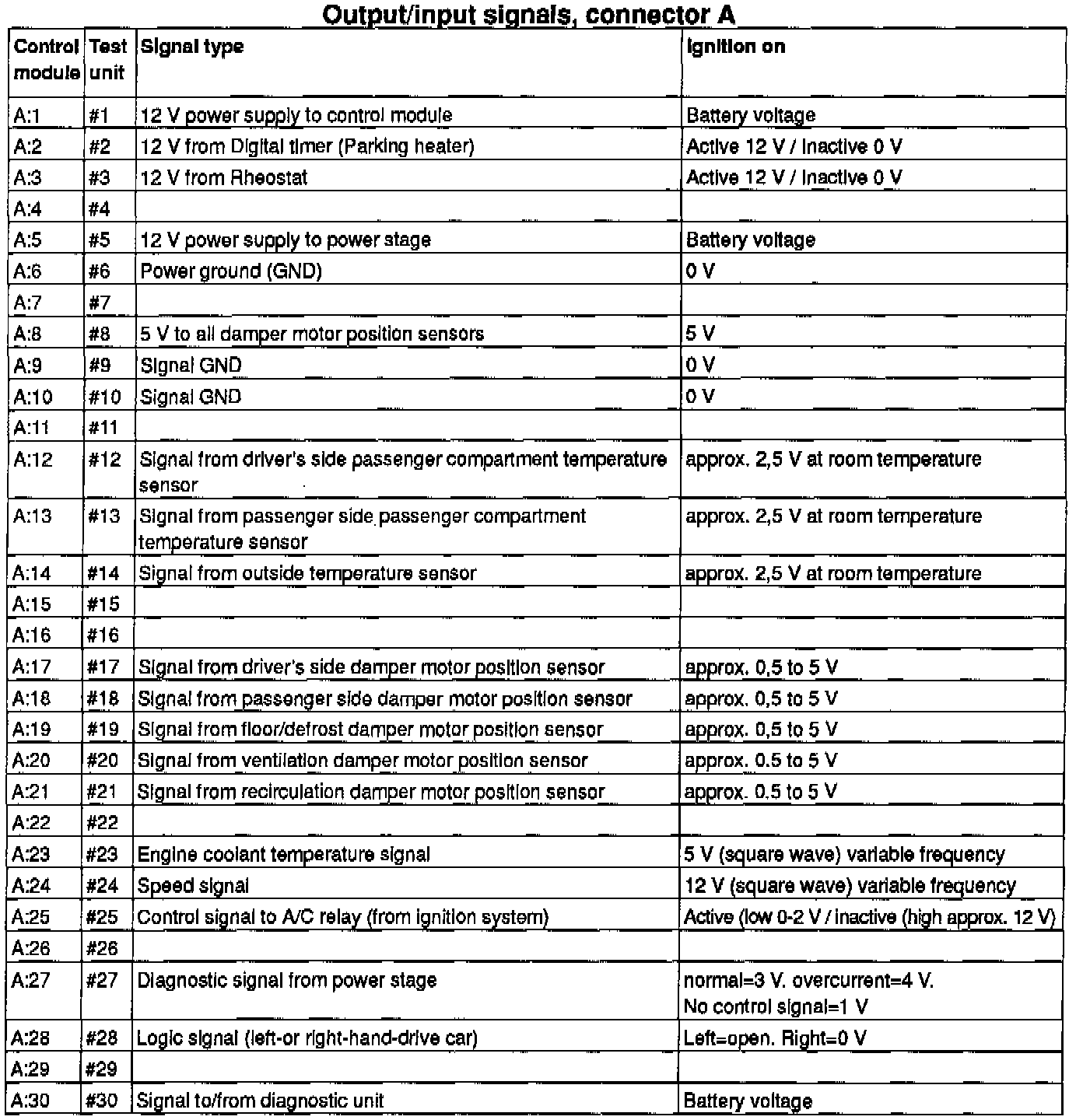

Output/Input Signals on Connector A:

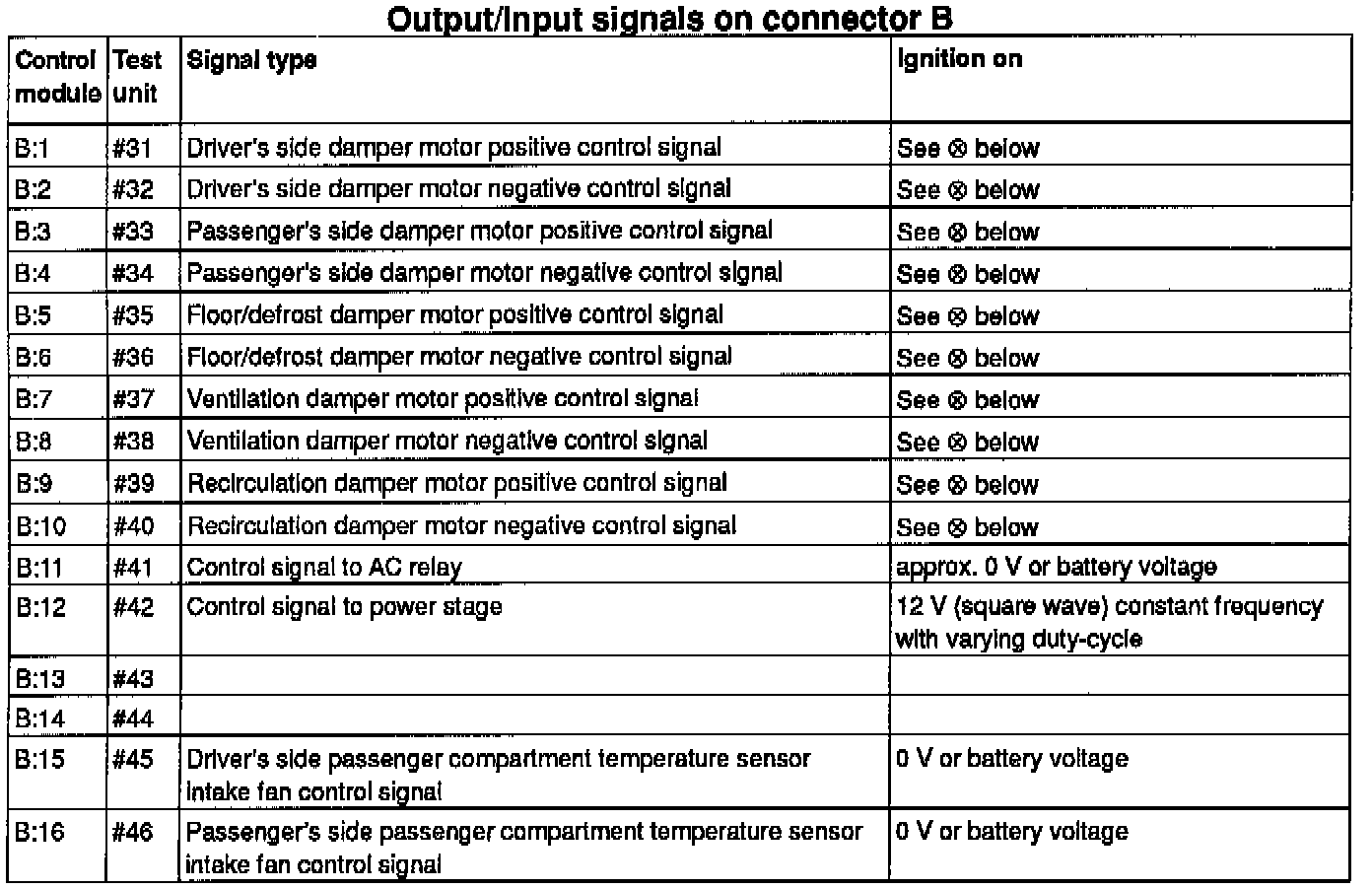

Output/Input Signals on Connector B:

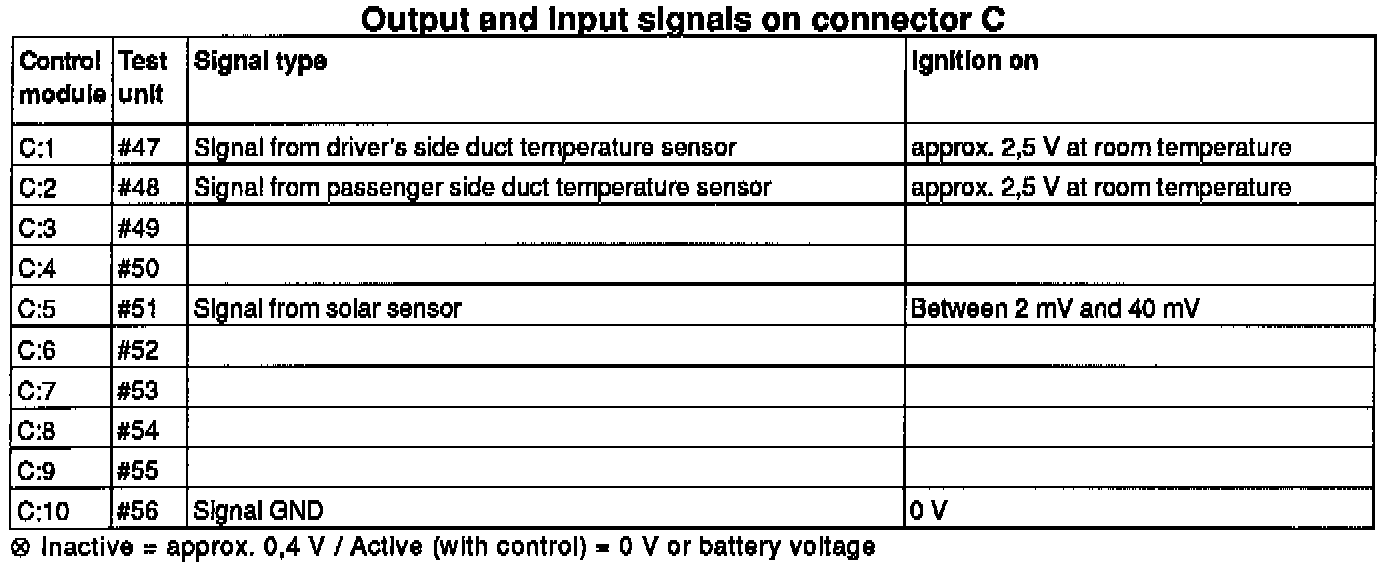

Output/Input Signals on Connector C:

NOTE: If Images refer to "below," see Image "Output/Input Signals on Connector C."
