Home >> Volvo >> 1996 >> 850 Platinum Ltd Edition L5-2.3L Turbo VIN 57 B5234FT >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Application and ID >> Classification of Crankshaft Main Bearings

Classification of Crankshaft Main Bearings








Markings

NOTE: Markings are punched into the cylinder block and crankshaft.

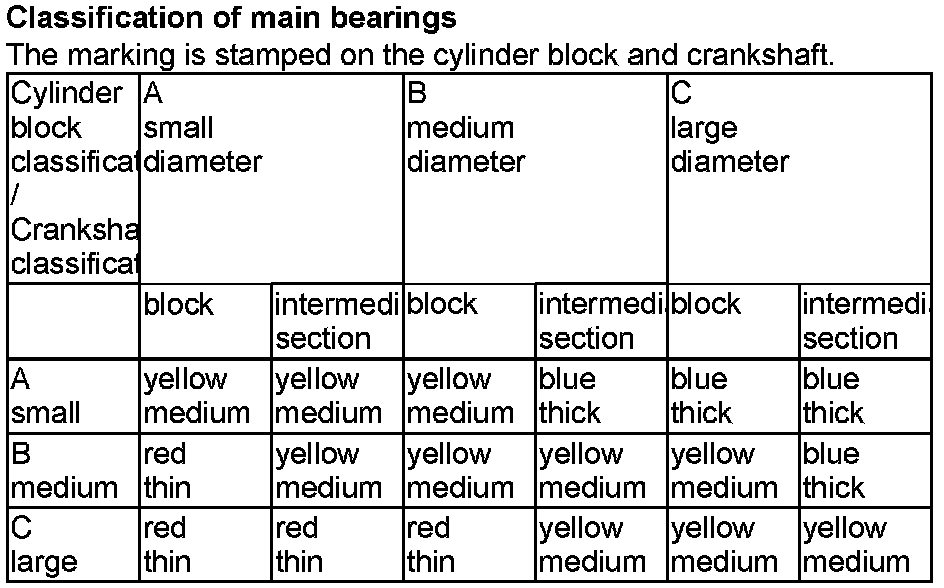

Specifications Table:





Classifications
