BD. Components Quick Reference

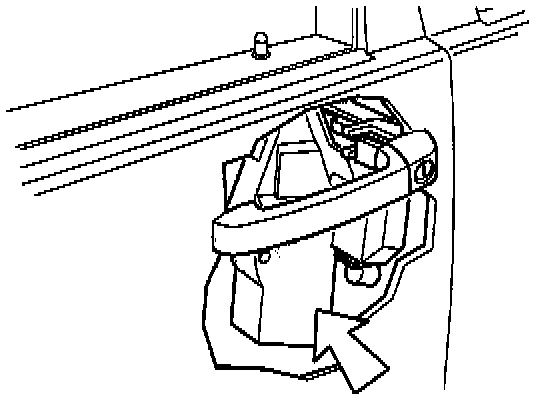

Central locking module, doors:
In front and rear doors

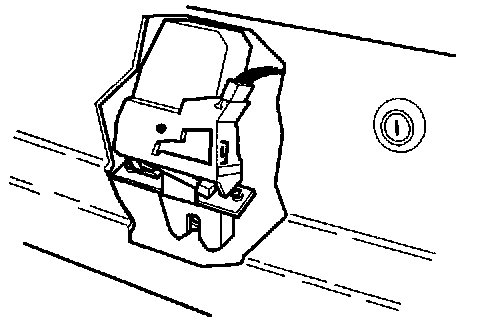

Central locking module, trunk/tailgate:
In trunk/tailgate

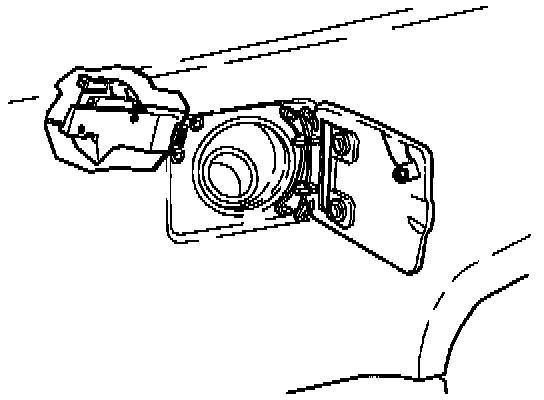

Central locking module, fuel filler cap:
By right hand rear window

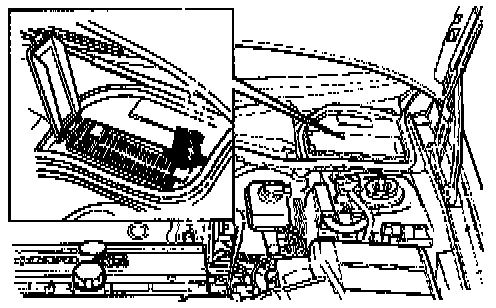

Fuses:
In engine compartment electrical control panel.

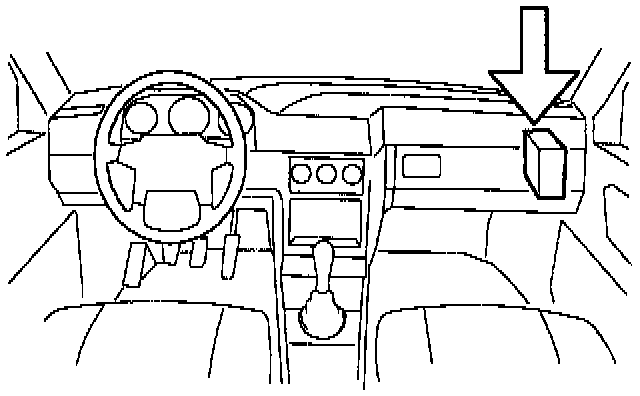

Receiver module:
Right hand A-post

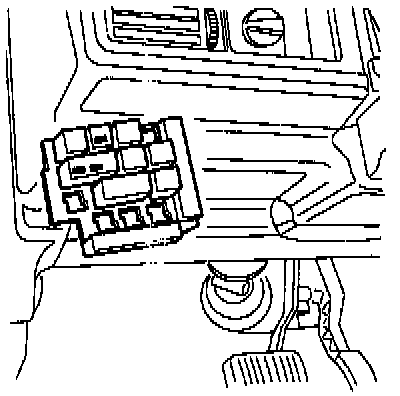

Central locking relay and driver's door relay
In passenger compartment electrical control panel
