Front Bumper Bracket: Service and Repair

Front Bumper Bracket

Observe safety precautions.

1 Inner lower front longitudinal member

2 Bumper bracket

3 Longitudinal member bar piece

Special tools, testers and auxiliary items required

• Resistance spot welder (VAS 6239 A) or

• Resistance spot welder (VAS 6525) or

• Resistance spot welder (VAS 6530) or

• Resistance spot welder (VAS 6535) or

• Resistance spot welder (VAS 6545)

• MIG soldering and welding units (VAS 6382)

• Gas-shielded welder 250A (VAS 6045A)

Removing

- Separate the original connection.

- Remove residual material.

Installation

• When using different types of steel and materials of different strengths, one of the inverters listed under Special Tools are required to perform repair work correctly.

Welding in

Replacement part

• Front bumper bracket

- Fit new part to vehicle standing on alignment bracket set and secure.

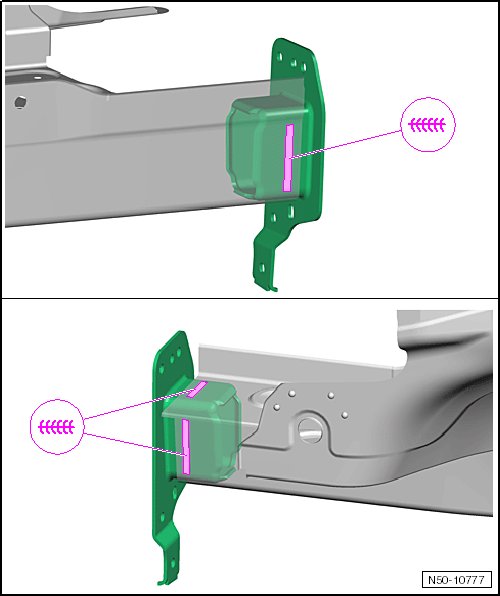

- Weld in bumper bracket, gas-shielded arc continuous weld seam.
