Window Guide

Window Guide

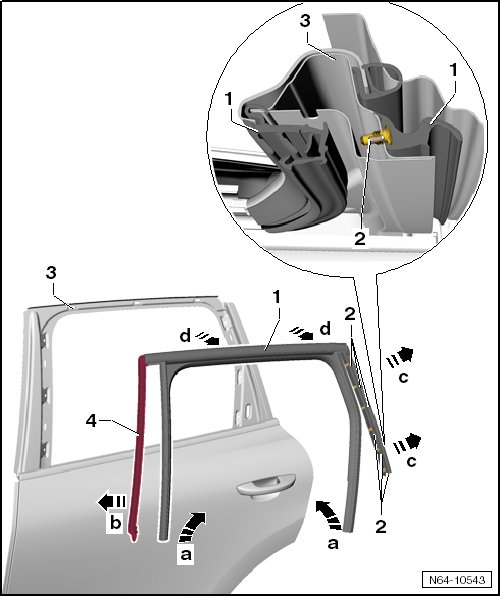

• The illustration shows a right door hinge. The left door hinge is identical.

• Do not bend window guide when removing!

Removing






Perform the following:

- Remove the front and rear trim.

- Roll the seal of the window guide - 1 - from the inside off of the window frame - 3 -.

- Pull the window guide - 1 - out of the mounts - arrows a - in the door.

- Detach the clips - 2 - of the seal - 1 - from the door - arrows c -.

- Loosen the glued part of the seal - 4 - carefully from the front edge of the door - arrow b -.

- Remove the seal - 1 - evenly - arrows d - from the door flange.

Installation






Perform the following:

- Press the window guide - 1 - onto the door flange - 3 -.

- Install the window guide - 1 - in the mounts.

- Pull the sealing lip on the window guide onto the door flange.

- Press in the clips - 2 -.

• A function test must be performed before the door trim is installed.
