Window Guide

Window Guide

• Removal and installation are described only for the left window guide. Removal and installation of the right window guide are derived accordingly from this.

• Do not bend window recess seal when lifting off!

Removing






Perform the following:

Removing

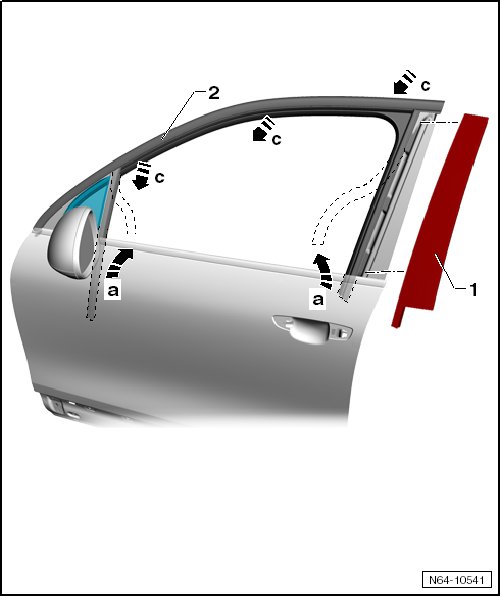

- Remove the trim - 1 -. Refer to => [ Front Door Trim ] Front Door Trim.

- Pull the window guide out of the window channel - arrows a -.

- Roll the seal of the window guide - 1 - from the inside off of the window frame.

- Starting in the rear area, pull the window guide evenly all around - arrows c - from the door flange.

Installation

- Press the window guide evenly all around onto the door flange starting in the rear area.

- Insert the window guide into the window channel.
