Fixed Door Glass

Fixed Door Glass

Removing






Perform the following:

- Door Window, Removing

- Detach the subframe.

- Remove the inner window channel seal.

- Remove the bolts - 2 and 4 -.






- Pull the door window - 1 - backward - arrows a -

- Turn the door window - 1 - 90° - arrow b - and remove in an upward direction - arrow c -.

Installation






Perform the following:

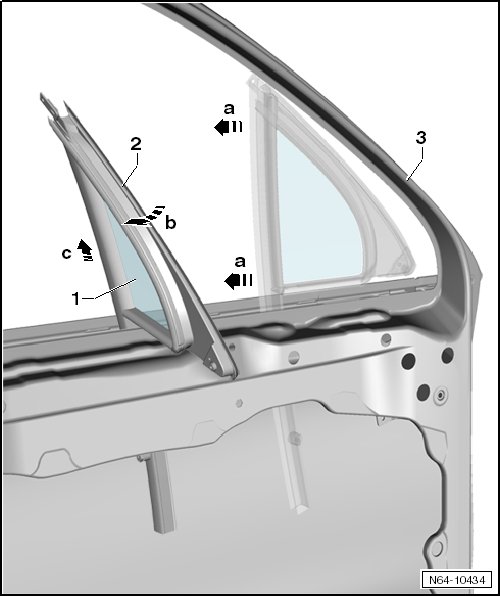

- Insert the door window lateral to the door - arrow a -.

- Turn the door window - 1 - 90° - arrow b - and press forward - arrow c -.

- The door window seal - 2 - must be secure in the door frame - 3 -.






- Tighten the bolts - 2 and 4 -. Tightening specification: 4.5 Nm.
