Air Spring Damper Overview

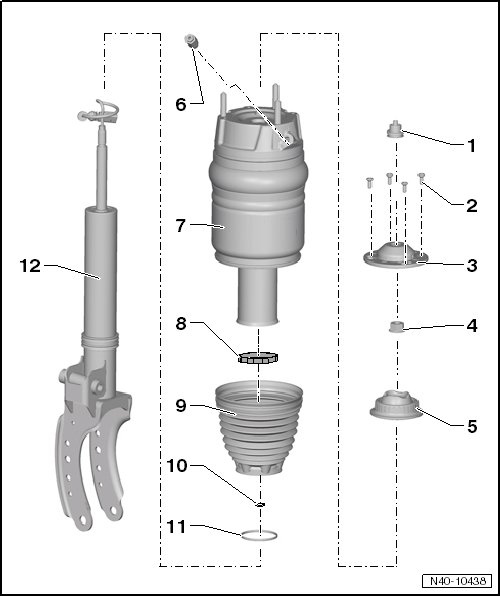

Air Spring Damper Overview






1 Grommet

2 Bolt

• 9 Nm

• Quantity: 4

3 Cover

4 Nut

• 70 Nm

• Always replace if removed.

5 Rubber Mount

6 Pressure-Holding Valve

• 12 Nm

• Observe important information regarding removal and installation. Refer to => [ The vehicle must be on a lifting platform to replace the pressure-holding valve. The vehicle wheels must rotate freely. ] Front Suspension.

• Removing and Installing, refer to => [ Pressure-Holding Valve ] Front Suspension.

7 Air Spring

• Observe the information regarding air spring shock absorber repair. Refer to => [ Air Spring Damper Repair Information ] Air Spring Damper Repair Information.

• When the vehicle has been driven 200,000 km, if there is damage to an air spring, it is recommended that the opposite air spring is also replaced.

• With integrated buffer stop.

8 Anti-Extraction Device

• Always replace if removed.

9 Boot

10 Seal

• Always replace if removed.

• Grease with (N 052 150 00).

11 Seal

• Always replace if removed.

• Grease with (N 052 150 00).

12 Shock Absorbers

• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).

• Observe the information regarding air spring shock absorber repair. Refer to => [ Air Spring Damper Repair Information ] Air Spring Damper Repair Information.
