Air Spring Damper

Air Spring Damper

- Before loosening the air line when installed, check whether the air spring is still filled with a residual pressure of approximately 3 bar.

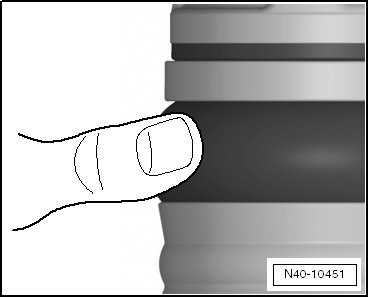

- Press with the thumbs on the air spring bead. The bead must demonstrate noticeable resistance.

- If significant resistance is not noticed, the air spring is not pressurized.

- The vehicle can be driven up to 100 km with a depressurized air spring.

- The air spring must be replaced together with the pressure-holding valve when the vehicle is driven more than 100 km with a depressurized air spring.

• Thoroughly clean connecting points and their surrounding areas before loosening.

• Place removed parts on a clean surface and cover to prevent contamination. Use foils and paper. Only use lint-free cloths!

• Only install clean components: Only unpack replacement parts immediately prior to installation.

• Only use lubricants indicated by part number.

• Carefully cover or seal open components, if repairs are not carried out immediately.
