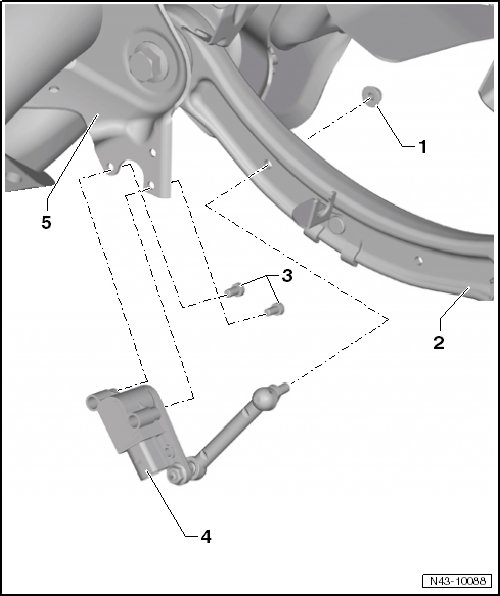

Rear Level Control System Sensor Overview

Rear Level Control System Sensor Overview

• A replacement left/right rear level control system sensor (G76/G77) comes complete with the coupling rod.






1 Nut

• 8 Nm

2 Upper Transverse Link

3 Bolt

• 5 Nm

4 Left/Right Rear Level Control System Sensor (G76/G77)

• Complete with components.

• Removing and Installing, refer to => [ Rear Level Control System Sensor ] Rear Level Control System Sensor.

• If the level control system sensor was removed and then installed, a basic setting of the level control system must be performed with the vehicle diagnostic tester (VAS 5051B).

• After replacement, perform the basic setting for the headlamps using the (VAS 5051B).

5 Subframe
