Front Level Control System Sensor Overview

Front Level Control System Sensor Overview

• A replacement left/right front level control system sensor (G78/G289) comes complete with the coupling rod and the upper and lower brackets.

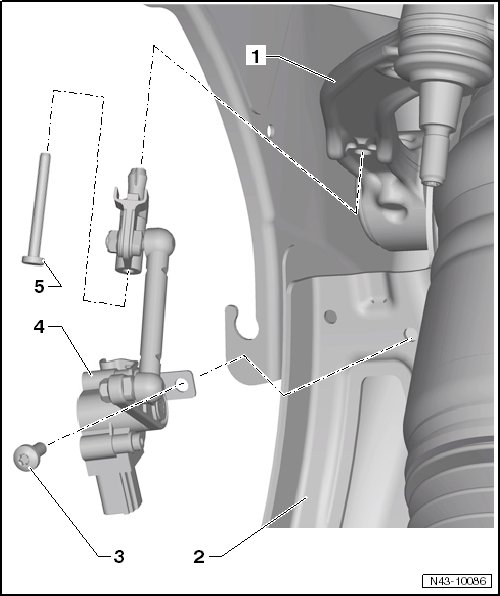

1 Upper Control Arm

2 Wheel Housing

3 Bolt

• 9 Nm

4 Left/Right Front Level Control System Sensor (G78/G289)

• Complete with components.

• Removing and Installing, refer to => [ Front Level Control System Sensor ] Front Level Control System Sensor.

• If the level control system sensor was removed and then installed, a basic setting of the level control system must be performed with the vehicle diagnostic tester (VAS 5051B).

• After replacement, perform the basic setting for the headlamps using the (VAS 5051B).

5 Assembly Pin
