Relay Carrier in Vehicle Interior

Relay

Relay carrier in vehicle interior







1 - Fuse and relay carrier 1 -SR 1-

2 - Fuse and relay carrier 2 -SR 2-

3 - Vehicle electrical system control module -J519-

4 - Comfort system central control module -J393-

5 - Parking aid control module -J446-

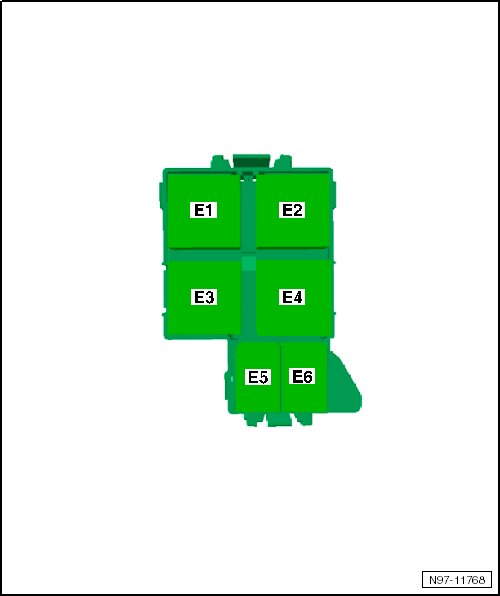

Fuse and relay carrier 1 -SR 1- from April
2010







E1 - Left windshield defogger relay -J410- (643)

E2 - Right windshield defogger relay -J411- (643)

E3 - Sockets relay -J807- (100)

E4 - Not used

E5 - Residual heat relay -J708- (404)

E6 - Fan activation relay -J937- (449) 1

• 1)Only for vehicles with hybrid drive



Fuse and relay carrier 1 -SR 1- from November
2010







E1 - Not used

E2 - Low engine coolant indicator control module -J120- (422)

E3 - Not used

E4 - Transmission hydraulic pump relay -J510- (644) 2

E5 - Coolant level relay -J816- (646)

E6 - Not used

• 2)Only for vehicles with hybrid drive

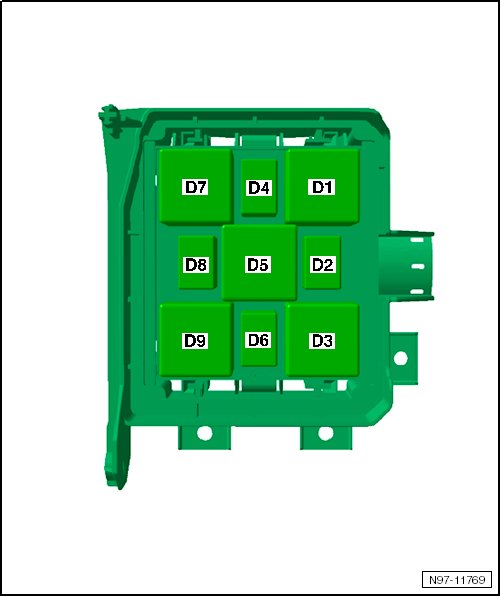

Fuse and relay carrier 2 -SR 2- from April
2010







D1 - Level control system compressor relay -J403- (373)

D2 - Coolant level relay -J816- (404)

D3 - Not used

D4 - Horn relay -J413- (395)

D5 - Transmission hydraulic pump relay -J510- (100) 4

D6 - Transmission hydraulic pump relay -J510- (404) 3

D7 - Rear window defogger relay -J9- (643)

D8 - Not used

D9 - Low engine coolant indicator control module -J120- (422) 4

• 3)Only for vehicles with Start/Stop system

• 4)Only for vehicles with hybrid drive



Fuse and relay carrier 2 -SR 2- from November
2010







D1 - Level control system compressor relay -J403- (645)

D2 - Residual heat relay -J708- (646)

D3 - Left windshield defogger relay -J410- (645)

D4 - Horn relay -J413- (646)

D5 - Sockets relay -J807- (644)

D6 - Transmission hydraulic pump relay -J510- (646) 5

D7 - Rear window defogger relay -J9- (645)

D8 - Fan activation relay -J937- (646)

D9 - Right windshield defogger relay -J411- (645)

• 5)Only for vehicles with Start/Stop system
