Overview Of Relay Carrier

Relay

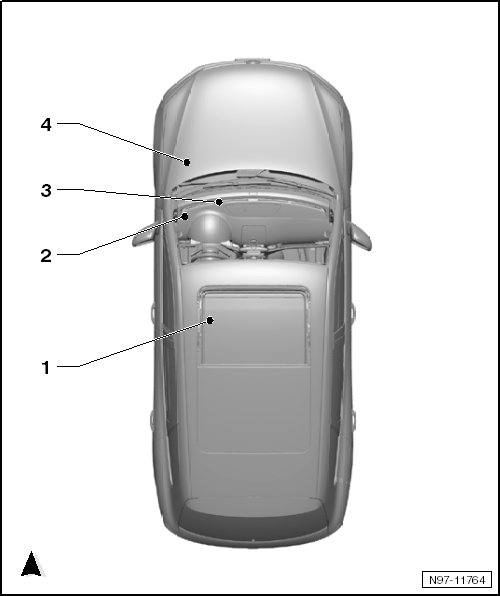

Overview of Relay Carrier







1 - Connection and junction box 3 -SX3-
• Component location => [ HSB box battery under driver seat ] HSB Box Battery Under Driver Seat
• Relay carrier assignment => [ ] HSB Box Battery Under Driver Seat

2 - Fuse and relay carrier 2 -SR 2-
• Component location => [ Relay carrier in vehicle interior ] Relay Carrier in Vehicle Interior
• Relay carrier assignment from April 2010 => [ from April 2010 ] Relay Carrier in Vehicle Interior
• Relay carrier assignment from November 2010 => [ from November 2010 ] Relay Carrier in Vehicle Interior

3 - Fuse and relay carrier 1 -SR 1-
• Component location => [ Relay carrier in vehicle interior ] Relay Carrier in Vehicle Interior
• Relay carrier assignment from April 2010 => [ from April 2010 ] Relay Carrier in Vehicle Interior
• Relay carrier assignment from November 2010 => [ from November 2010 ] Relay Carrier in Vehicle Interior

4 - Relay Carrier on Electronics Box (in plenum chamber, left)
• Component location => [ Relay Carrier on Electronics Box (in plenum chamber, left) ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)
• Relay carrier assignment 3.0L, V6 diesel engine (CASA) from April 2010 => [ Relay carrier assignment 3.0L, V6 diesel engine (CASA) from April 2010 ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 3.0l, V6 diesel engine (CASA, CASD, CATA) from November 2010 => [ Relay carrier assignment 3.0L, V6 diesel engine (CASA, CASD, CATA) from November 2010 ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 3.0l, V6 diesel engine (CJGD, CJMA, CRCA) from May 2011 => [ Relay carrier assignment 3.0L, V6 diesel engine (CJGD, CJMA, CRCA) from May 2011 ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 4.2L, V8 diesel engine (CKDA) from April 2010 => [ Relay carrier assignment 4.2L, V8 diesel engine (CKDA) from April 2010 ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 4.2L, V8 diesel engine (CKDA) from November 2010 => [ Relay carrier assignment 4.2L, V8 diesel engine (CKDA) from November 2010 ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 3.0L, V6 gasoline engine, hybrid system (CGEA, CGFA) => [ Relay carrier assignment 3.0L, V6 gasoline engine, hybrid system (CGEA, CGFA) ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 3.0L, V6 gasoline engine (CJTA) => [ Relay carrier assignment 3.0L, V6 gasoline engine (CJTA) ] Relay Carrier On Electronics Box (in Plenum Chamber, Left)

• Relay carrier assignment 3.6L, V6 gasoline engine (CGRA, CMTA) => [ Relay carrier assignment 3.6L, V6 gasoline engine (CGRA,CMTA)] Relay Carrier On Electronics Box (in Plenum Chamber, Left)
