System Specifications

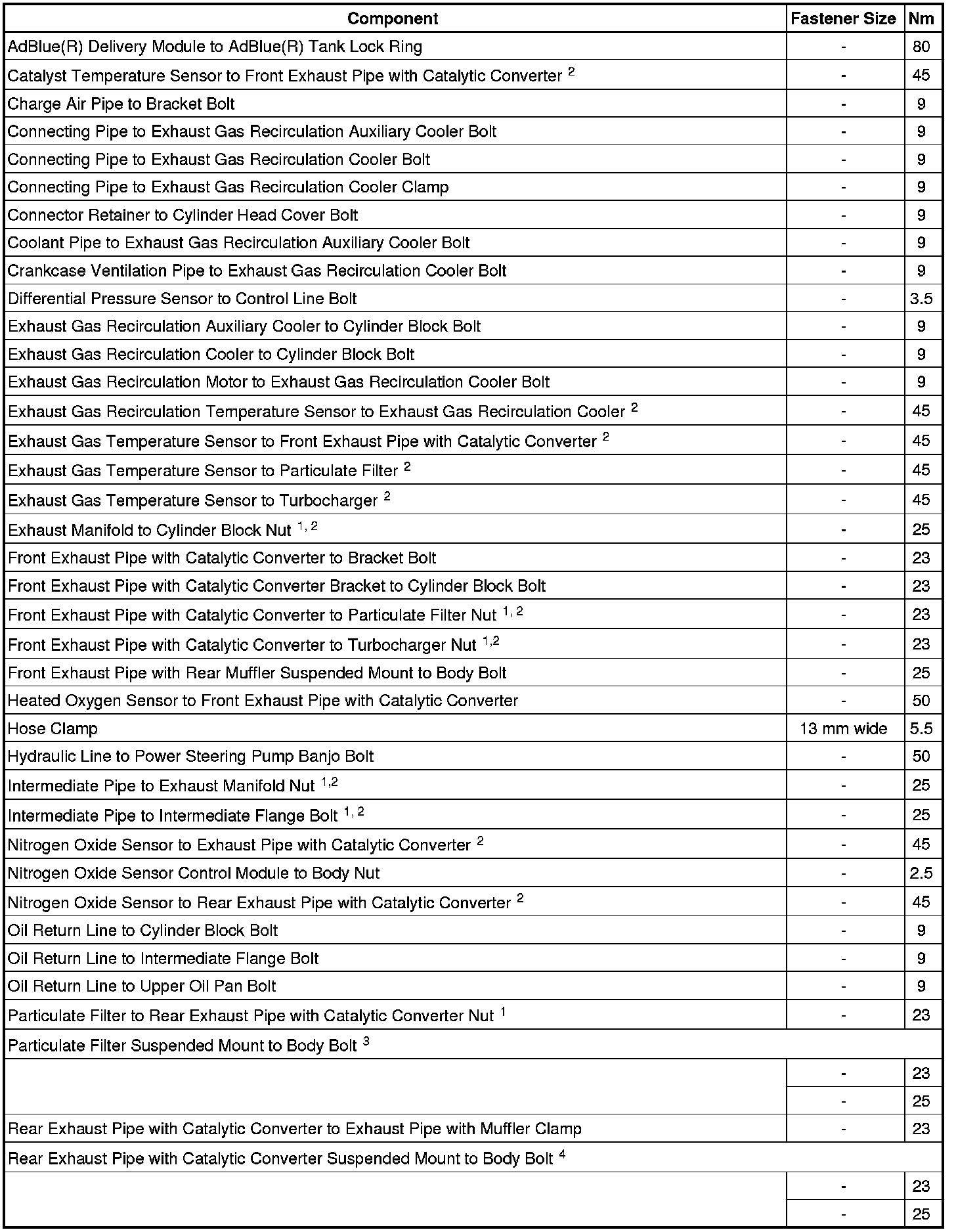

Fastener Tightening Specifications










• 1 Always replace

• 2 Lubricate with hot bolt paste. Refer to the Parts Catalog.

• 3 For clarification see - items 20 and 22 - in => [ Front Exhaust Pipe with Catalytic Converter, Particulate Filter and Rear Exhaust Pipe Overview ] Front Exhaust Pipe with Catalytic Converter, Particulate Filter and Rear Exhaust Pipe Overview.

• 4 For clarification see - items 1 and 25 - in => [ Front Exhaust Pipe with Catalytic Converter, Particulate Filter and Rear Exhaust Pipe Overview ] Front Exhaust Pipe with Catalytic Converter, Particulate Filter and Rear Exhaust Pipe Overview.
