System Specifications

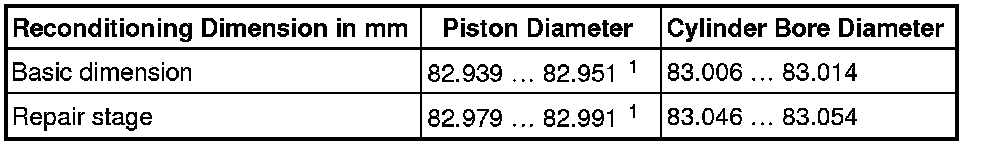

Piston and Cylinder Dimensions






• 1 Measurements are without the graphite coating (thickness = 0.02 mm). The graphite coating wears off.
