EGR Temperature Sensor: Service and Repair

EGR Temperature Sensor G98

Special tools, testers and auxiliary items required

• Socket (T40055)

Removing

- Remove the engine cover. Refer to => [ Engine Cover ] Engine Cover.

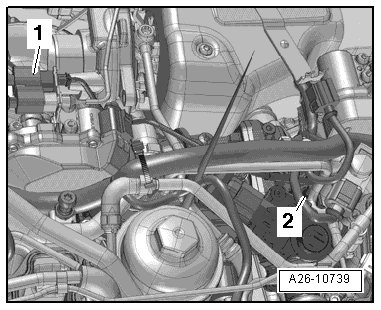

- Remove the orange EGR temperature sensor connector - 2 - from the bracket, disconnect it and free up the wire.






- Remove the EGR temperature sensor - 1 - using the socket (T40055).

Installing

Install in the reverse order of removal.
