Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor (G308)

Removal

- Remove the lower instrument panel trim panel..

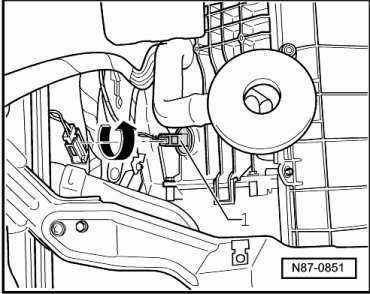

- Turn the sensor - 1 - approximately 90° in direction of arrow.






- Disconnect the connector from the sensor.

- Remove the sensor from the housing.

Installation

- Install in reverse order of removal.

- After completing the repair, perform the following: basic setting, refer to => [ Checking and Adjusting Components ] Checking and Adjusting Components.
