Rear Wheel Speed Sensor

Rear Wheel Speed Sensor

Removing

- Raise the vehicle.

- Remove the wheel.

- Remove brake caliper and suspend with wire so that the weight of the caliper does not cause any stress or damage to the brake line.

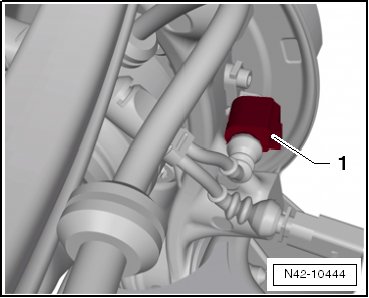

- Separate speed sensor and speed sensor wiring connector - 1 -.

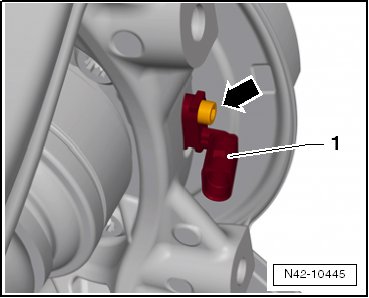

- Remove bolt - arrow - from the wheel bearing housing.






- Remove the ABS speed sensor - 1 - from the wheel bearing housing.

Installing

- Before inserting wheel speed sensor, clean inner surface of bore hole and coat sensor completely with Polycarbamide grease (G 052 142 A2).

- Insert the speed sensor into the hole in the wheel bearing housing and tighten the bolt to 8 Nm.

- Connect speed sensor to speed sensor wiring.
