Seat Temperature Switch: Service and Repair

Rear Heated Seat Regulating Switches (E128)/(E129)

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the rear vent.

- Remove the rear storage compartment in the center console.

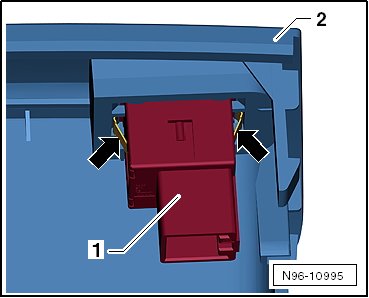

- Press the clips - arrows - and remove the Left rear heated seat regulating switch (E128) and Right rear heated seat regulating switch (E129) from the storage compartment - 2 - toward the rear.






Installing

- Install in reverse order of removal.
