Seat Temperature Switch: Description and Operation

Rear Heated Seat Regulating Switches (E128)/(E129)

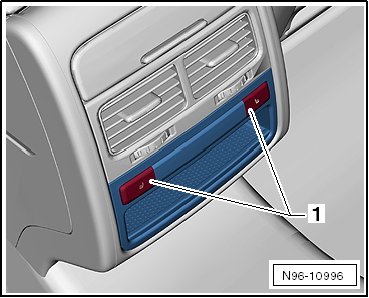

The left rear heated seat regulating switch (E128) and the right rear heated seat regulating switch (E129) - 1 - are installed inside the center console storage compartment on vehicles with a 2-zone rear temperature control with A/C. On this version, the rear seat heating control module (J786) is located in the front under the instrument panel. Rear Seat Heating Control Module (J786) , removing and installing, refer to => [ Rear Heated Seat Regulating Switches (E128)/(E129) ] Service and Repair.
