Rear Lid Lock Button in Luggage Compartment (E406)

Rear Lid Lock Button in Luggage Compartment (E406)

Removal

When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool (plastic wedge, screwdriver) will be positioned using commercially available adhesive tape.

- Turn off the ignition and all electric consumers and remove the key.

- Open rear lid.

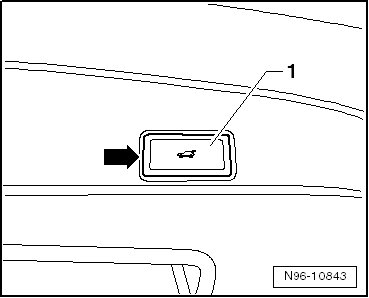

- Pry the button - 1 - out of the rear lid trim panel.

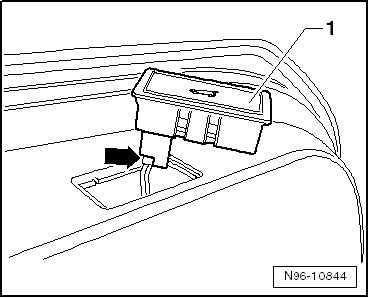

- Disconnect the connector - arrow - and remove the button - 1 -.






Installation

Install in reverse order of removal.
