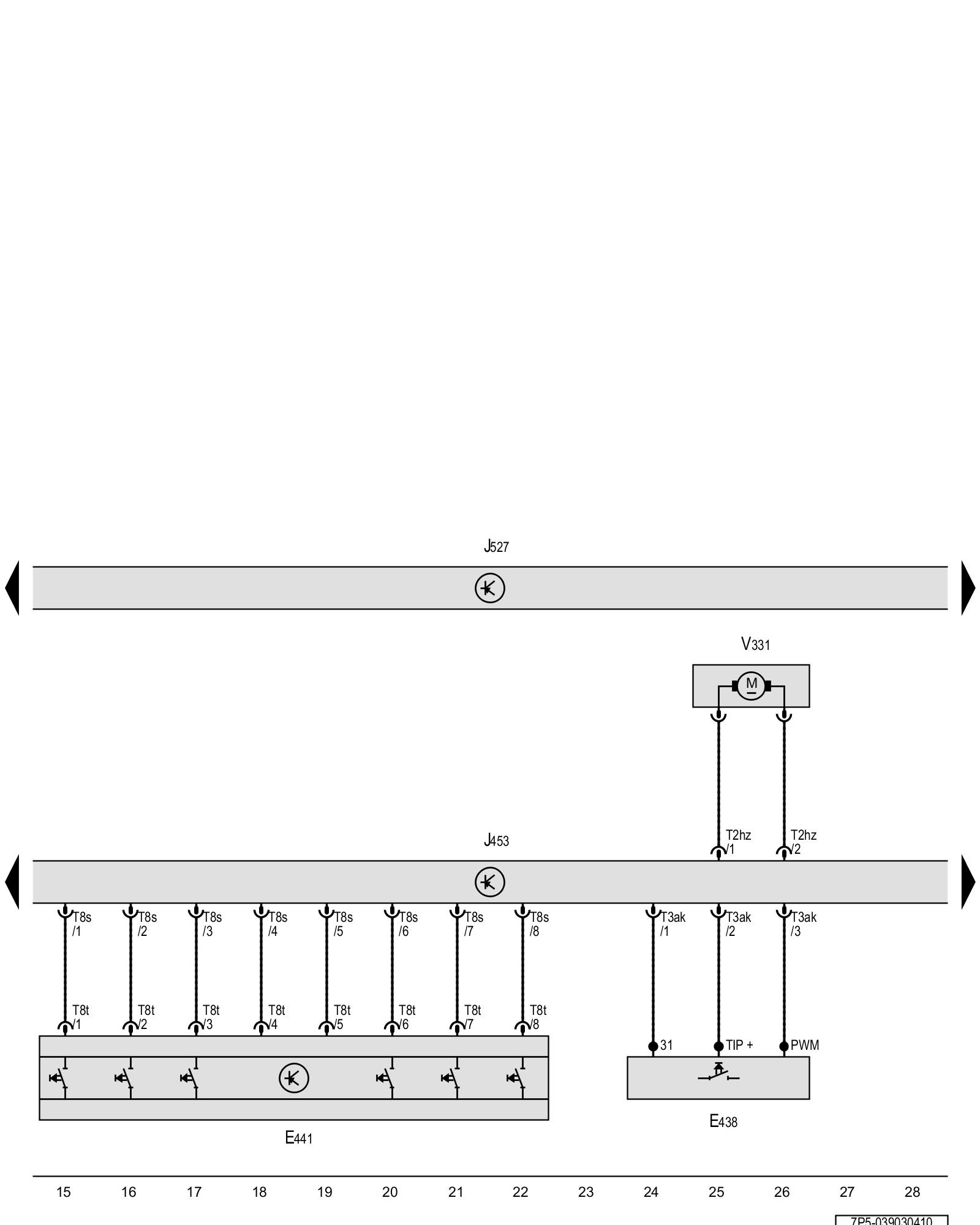

Diagram 39/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


tiptronic upshift button on steering wheel, Right multifunction buttons on steering wheel, Multifunction steering wheel control module, Steering column electronics control module, Steering wheel vibration motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E438 - tiptronic upshift button on steering wheel

E441 - Right multifunction buttons on steering wheel

J453 - Multifunction steering wheel control module Control Modules in Interior

J527 - Steering column electronics control module Control Modules in Interior Power Steering System Overview Steering Column Electronics Control Module -J527-

T2hz - Double connector

T3ak - 3-pin connector

T8s - 8-pin connector

T8t - 8-pin connector

V331 - Steering wheel vibration motor Lane Assist System Overview

Previous Diagram 39/2 (Tracks 1-14)

Next Diagram 39/4 (Tracks 29-42)
