Tire Pressure Module: Locations

Control modules in interior

Tire pressure monitoring control module -J502-









Component Location

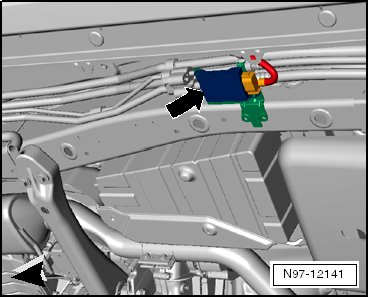

Tire pressure monitor control unit -J502- -arrow-


Pin Arrangements

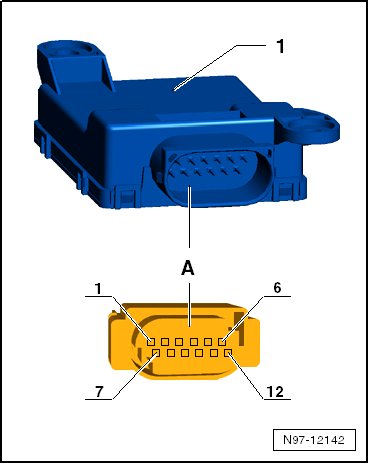

1 - Tire pressure monitoring control module -J502-
A - 12-Pin Connector -T12n-
