Heater control module -J162-







Control modules in engine compartment

Heater control module -J162-




Pin Arrangements

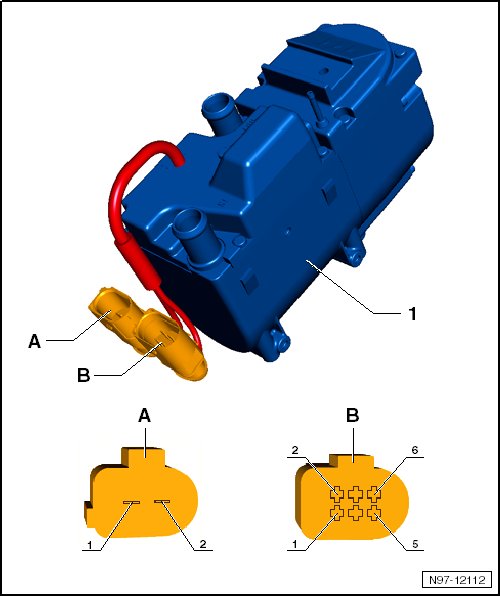

1 - Heater control module -J162-

A - 2-pin connector -T2em-

B - 6-pin connector -T6ai-
