Radiator Cooling Fan Control Module: Locations







Control modules in engine compartment

Coolant fan control module -J293-

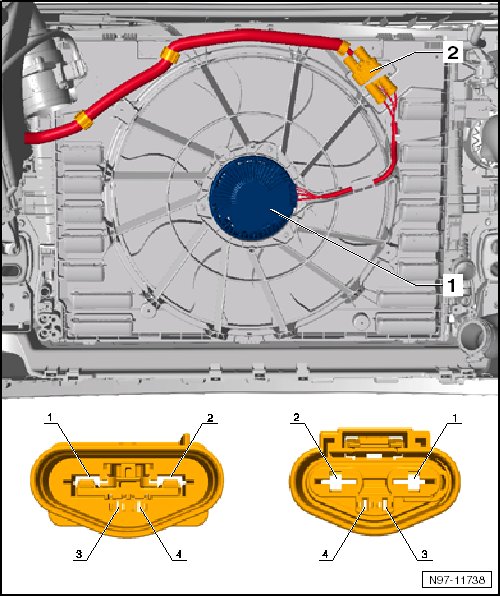

Component Location







1 - Coolant fan control module -J293-

2 - 4-pin connector -T4be-
