Global Positioning System Module: Locations

Control modules in interior

Vehicle positioning system control module -J895-

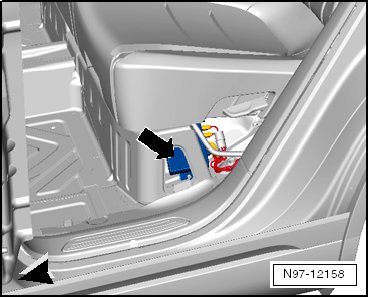

Component Location


Control module for vehicle location system -J895- -arrow-

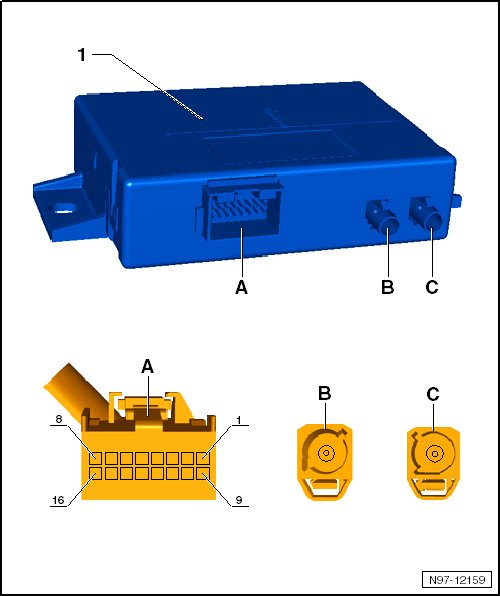

Pin Arrangements







1 - Vehicle positioning system control module -J895-

A - 16-pin connector -T16s-

B - GPS aerial connection, blue

C - GSM aerial connection, violet
