Communications Control Module: Locations

Control modules in interior

Cell phone operating electronics control module -J412-

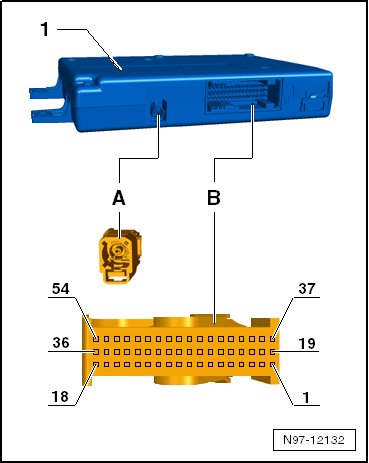

Pin Arrangements


1 - Cell phone operating electronics control module -J412-
A - Telephone aerial connection
B - 54-pin connector -T54-
