Fillpipe Restrictor: Description and Operation

Deactivating the Incorrect Fuel Protection

- Remove the incorrect fuel protection. Refer to => [ Incorrect Fuel Protection ] Service and Repair.

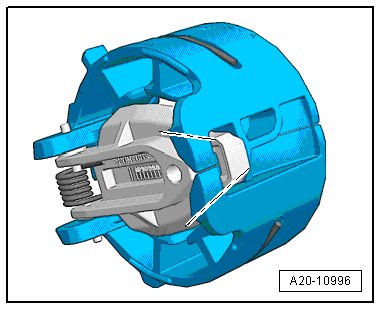

- Disconnect the tabs at the marks, as illustrated.






• The closure cap for the incorrect fuel protection must be able to be opened without catching.

- Install the incorrect fuel protection. Refer to => [ Incorrect Fuel Protection ] Service and Repair.
