Catalyst Temperature Sensor 1 G20

Catalyst Temperature Sensor 1 G20

Removing

- Remove the engine cover. Refer to => [ Engine Cover ] Engine Cover.

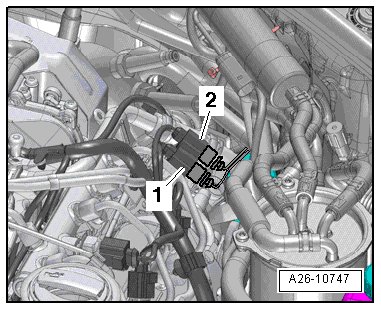

- Remove the connector - 1 - from the bracket and disconnect it.

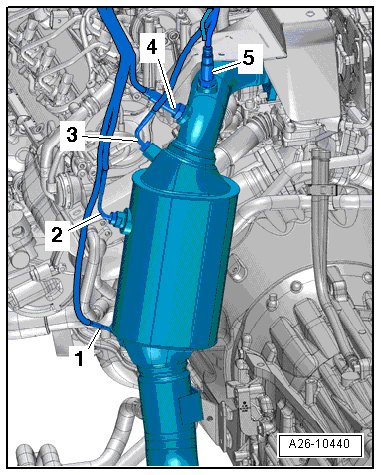

- Free up the wiring guide for the catalyst temperature sensor 1.

- Remove the catalyst temperature sensor 1 (- 2 -).






Installing

• For the correct tightening specification, refer to => [ Exhaust Sensor Overview ] Exhaust Sensor Overview.

Install in the reverse order of removal. Note the following:

• Coat the catalyst temperature sensor 1 threads with hot bolt paste, refer to the Parts Catalog.
