Engine Speed Sensor: Service and Repair

Engine Speed Sensor G28

Removing

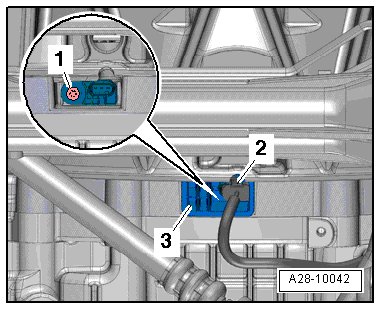

- Remove the rear noise insulation.

- Remove the grommet - 3 -.

- Disconnect the connector - 2 -.






- Remove the bolt - 1 - and the engine speed sensor.

Installing

Install in the reverse order of removal. Note the following:

• Tightening specification: 9 Nm

- Install the rear noise insulation.
