CAN Bus Infotainment Interface -J885-

Control modules in luggage compartment

CAN bus Infotainment interface -J885-

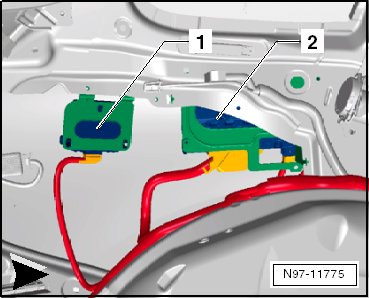

Component Location







1 - CAN bus Infotainment interface -J885-
2 - Digital Sound System Control Module -J525-


Connector Assignment Infotainment CAN Bus Interface -J885-







1 - CAN bus Infotainment interface -J885-

2 - 20-pin connector -T20f-

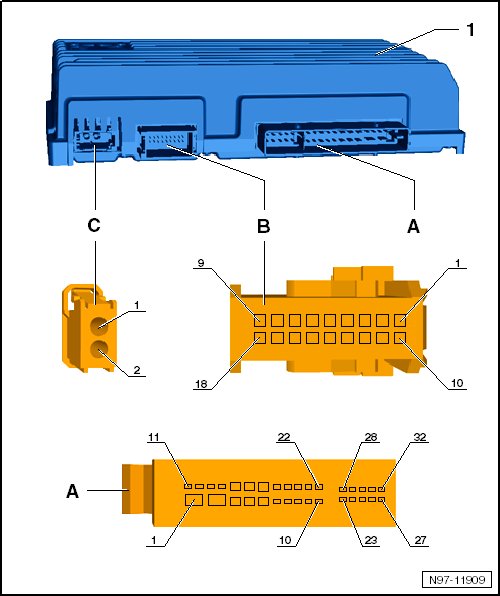

Connector Assignment Digital Sound Package Control Unit -J525-







1 - Digital Sound System Control Module -J525-

A - 32-pin connector -T32i-

B - 18-pin connector -T18d-

C - 2-pin connector -T2fl-
