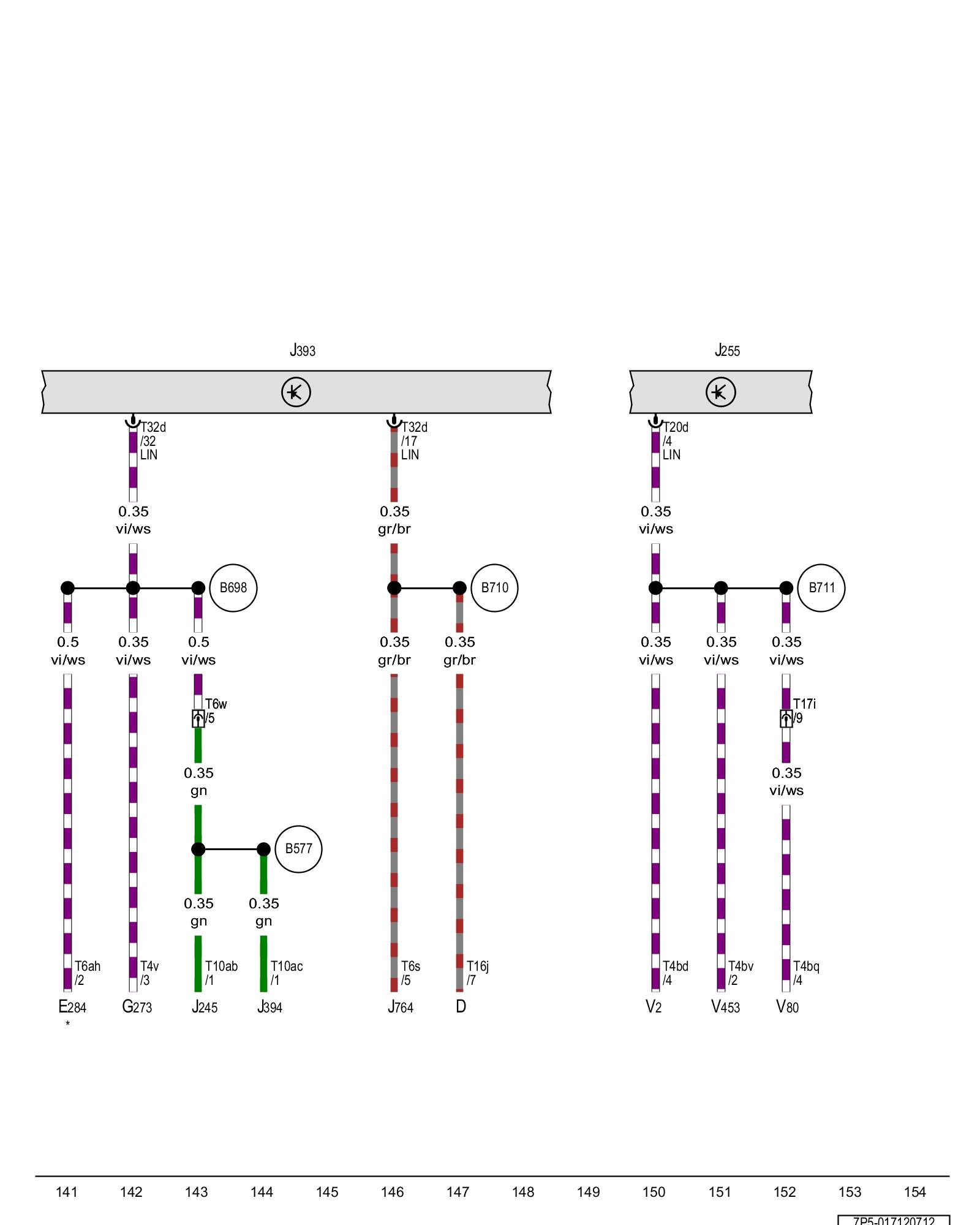

Diagram 17/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Climatronic control module, Comfort system central control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/starter switch

E284 - Garage door opener control head

G273 - Interior monitoring sensor

J245 - Power sunroof control module Control Modules in Interior Locations [1][2]Diagrams

J255 - Climatronic control module Control Modules in Interior Climatronic (Automatic Climate Control) Control Module -J255-

J393 - Comfort system central control module Control Modules in Interior

J394 - Roof shade control module Overview of Control Modules in Luggage Compartment Locations [1][2]Diagrams

J764 - Electronic steering column lock control module Power Steering System Overview

T4bd - 4-pin connector

T4bq - 4-pin connector

T4bv - 4-pin connector

T4v - 4-pin connector

T6ah - 6-pin connector

T6s - 6-pin connector

T6w - 6-pin connector Overview, Coupling Stations Inside The Vehicle

T10ab - 10-pin connector

T10ac - 10-pin connector

T16j - 16-pin connector

T17i - 17-pin connector Overview: Coupling Stations Inside The Luggage Comp.

T20d - 20-pin connector

T32d - 32-pin connector

V2 - Fresh air blower Climatronic (Automatic Climate Control) System Overview Diagrams

V80 - Rear fresh air blower

V453 - Right indirect ventilation door control motor

(B577) - LIN bus connection (in roof wiring harness)

(B698) - LIN bus connection 3 (in main wiring harness)

(B710) - LIN bus connection 5 (in main wiring harness)

(B711) - LIN bus connection 6 (in main wiring harness)

* - from November 2010
