Side Panel Tail Lamps Overview

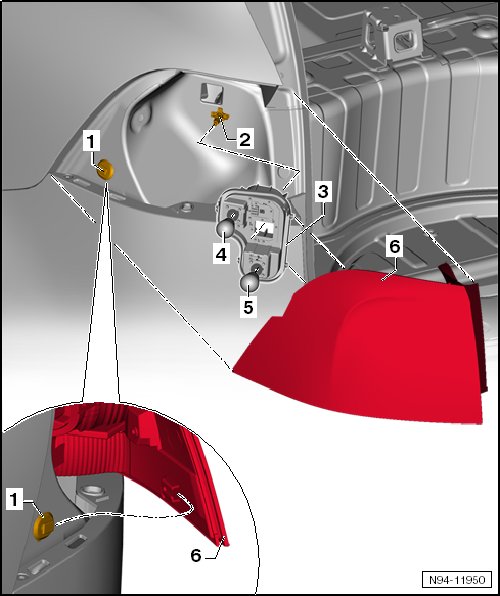

Side Panel Tail Lamps Overview






1 - Clip Inside The Side Panel

2 - Bolt

• 2 Nm.

• For the side panel tail lamps to the body.

3 - Bulb Holder

• Removing and installing, refer to => [ Side Panel Tail Lamp Bulb Holder ] Side Panel Tail Lamp Bulb Holder.

4 - Left Brake/Tail Light (M21) and Right Brake/Tail Light (M22)

• 12V / P21W

• Checking, refer to => [ Comfort System Central Control Module (J393), Output Diagnostic Test Mode ] Scan Tool Testing and Procedures.

5 - Left Rear Turn Signal Lamp (M6) and Right Rear Turn Signal Lamp (M8)

• 12V / PY21W

• Checking, refer to => [ Vehicle Electrical System Control Module (J519), Output Diagnostic Test Mode ] Scan Tool Testing and Procedures.

6 - Tail Lamp Housing

• Removing and installing, refer to => [ Side Panel Tail Lamps ] Side Panel Tail Lamps.
