Left Headlamp Beam Adjustment Motor (V48)/Right Headlamp Beam Adjustment Motor (V49)

Left Headlamp Beam Adjustment Motor (V48)/Right Headlamp Beam Adjustment Motor (V49)

• If the motors are removed and installed again or replaced, check the headlamp adjustment and adjust it again if necessary. Refer to => Procedure Description.

• Removing and installing the left headlamp beam adjustment motor is shown in the illustrations.

• Removing and installing the right headlamp beam adjustment motor is identical.

Removing:

- Turn off the ignition and all electric consumers and remove the key.

- Remove the headlamp. Refer to => [ Headlamp ] Headlamp.

- Remove both bolts - arrows -.






- Press the lock button and, starting at the top, remove the cover with the control module - 2 - from the headlamp housing.

- Disengage the cover from the lower guides and move it to the side. Pay attention to the wires still connected.

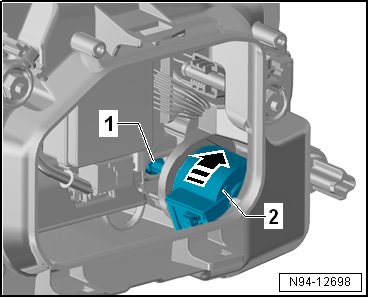

- Turn the headlamp range control positioning motor - 2 - all the way in the - direction of the arrow -.






- Move the headlamp range control positioning motor - 2 - so that it is possible to disengage the ball head - 1 - from the reflector toward the rear.

- Remove the headlamp beam positioning motor fro the headlamp. Be careful of the connected wires.

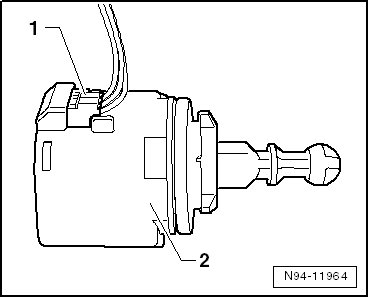

- Disconnect the connector - 1 - and remove the positioning motor - 2 -.






Installing:

Install in reverse order of removal. Note the following:

• Slightly lift the reflector for the low beam headlamp. This makes is easier to install the ball head into the mount on the reflector.

• When installing cap, ensure proper seating. Water getting in the headlamp will cause damage.

- Check headlamp for function.

- Check the headlamp adjustment and correct it if necessary. Refer to => Procedure Description.
