Diagram 21/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

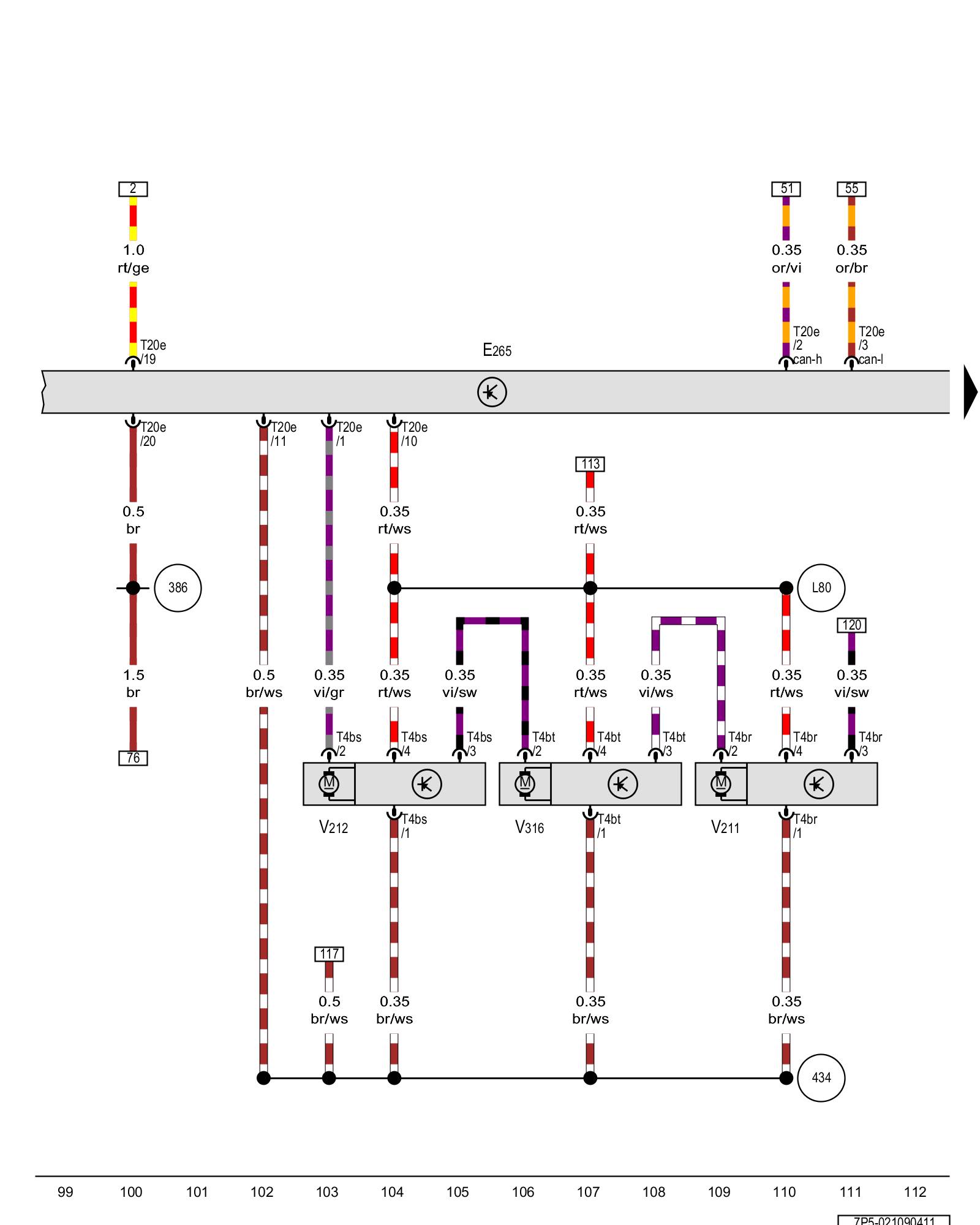

Rear A/C display control head, Right B-pillar/footwell shut-off door motor, Left B-pillar/footwell shut-off door motor, Right rear upper body vent motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E265 - Rear A/C display control head Control Modules in Interior

T4br - 4-pin connector

T4bs - 4-pin connector

T4bt - 4-pin connector

T20e - 20-pin connector

V211 - Right B-pillar/footwell shut-off door motor

V212 - Left B-pillar/footwell shut-off door motor

V316 - Right rear upper body vent motor

(386) - Ground connection 21 (in main wiring harness)

(434) - Sensor ground connection 3 (in Climatronic wiring harness)

(L80) - Sensor connection 3 (in Climatronic wiring harness)

Previous Diagram 21/8 (Tracks 85-98)

Next Diagram 21/10 (Tracks 113-126)
