Diagram 21/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

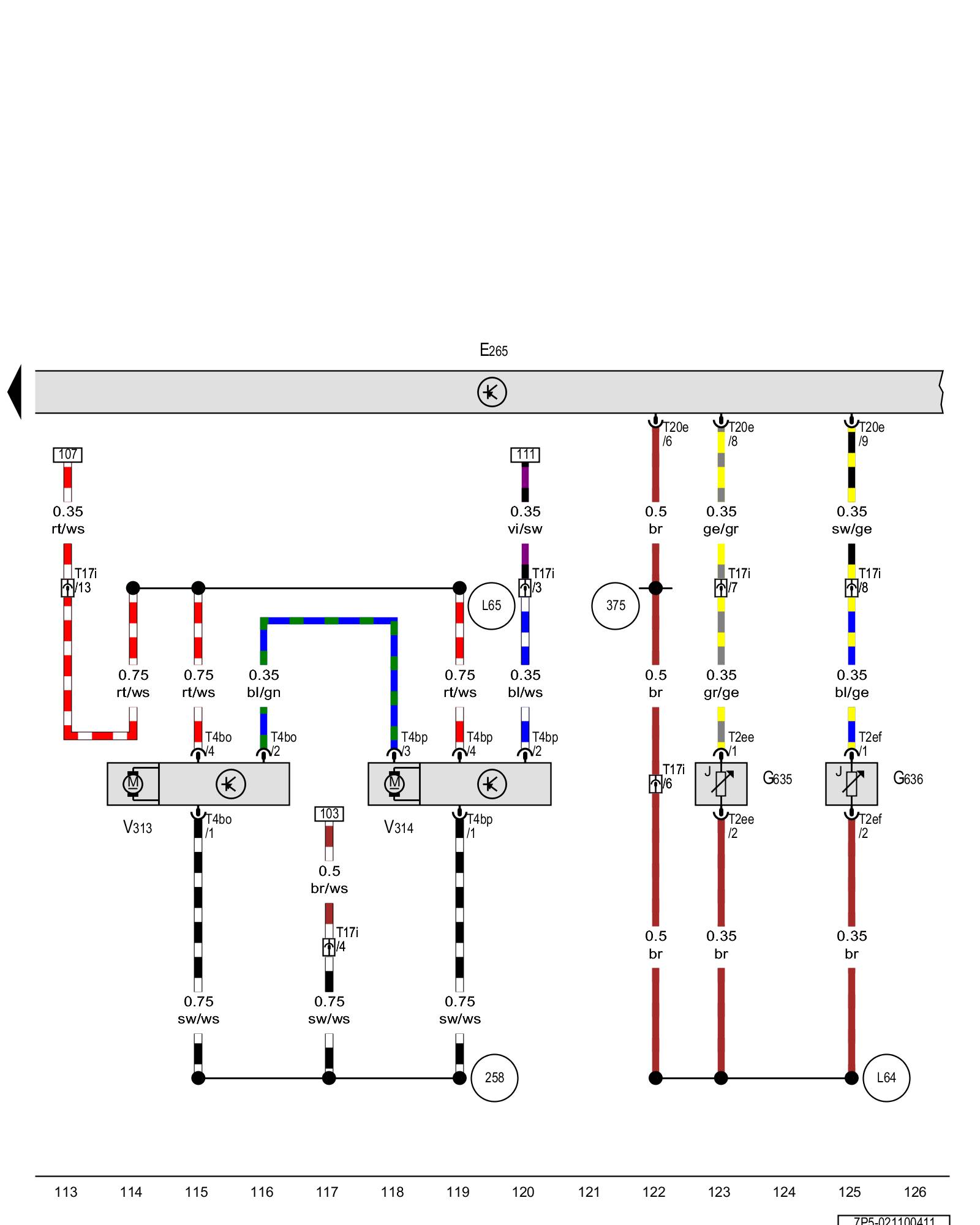

Rear A/C display control head, Left rear upper body vent temperature sensor, Right rear upper body vent temperature sensor, Left rear temperature door motor, Right rear temperature door motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E265 - Rear A/C display control head Control Modules in Interior

G635 - Left rear upper body vent temperature sensor

G636 - Right rear upper body vent temperature sensor

T2ee - Double connector

T2ef - Double connector

T4bo - 4-pin connector

T4bp - 4-pin connector

T17i - 17-pin connector Overview: Coupling Stations Inside The Luggage Comp.

T20e - 20-pin connector

V313 - Left rear temperature door motor

V314 - Right rear temperature door motor

(258) - Ground connection (in rear Climatronic wiring harness)

(375) - Ground connection 10 (in main wiring harness)

(L64) - Actuator motors connection (in rear Climatronic wiring harness)

(L65) - Positive connection (30) (in rear Climatronic wiring harness)

Previous Diagram 21/9 (Tracks 99-112)
