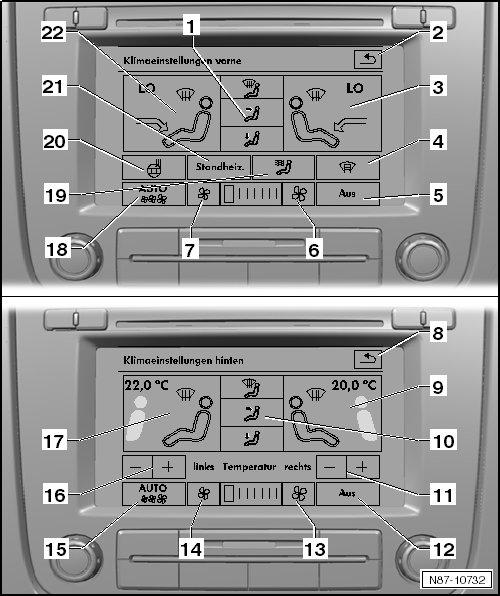

Climatronic via Infotainment System Overview

Climatronic via Infotainment System Overview






1 Buttons For Setting The Front Air Distribution

• Air distribution to the windshield, the upper body, and the footwell.

2 Back Button

• Return to the previous menu.

3 Display Of The Front Passenger Air Distribution And Temperature Setting

4 Windshield Defroster Button

• Only works with the engine running and switches off automatically after several minutes.

5 OFF Button

• The rear Climatronic is switched off.

6 Button For Increasing The Front Blower Speed

7 Button For Lowering The Front Blower Speed

8 Back Button

• Return to the previous menu.

9 Display Of The Right Rear Air Distribution and Temperature Setting

10 Buttons For Setting The Rear Air Distribution

• Air distribution to the windshield, the upper body, and the footwell.

11 Right Rear Temperature Control

12 OFF Button

• The rear Climatronic is switched off.

13 Button For Increasing The Rear Blower Speed

14 Button For Lowering The Rear Blower Speed

15 AUTO - Rear Button

• Automatic control for temperature, blower, and air distribution.

16 Left Rear Temperature Control

17 Display Of The Left Rear Air Distribution and Temperature Setting

18 AUTO - Front Button

• Automatic control for temperature, blower, and air distribution.

19 Button For Residual Heat Function

• When residual heat function is switched on the residual heat of engine is pumped by a coolant pump to the heater core.

20 Steering Wheel Heating Button

• The steering wheel is heated to approximately 25 °C (77 °F) and is kept almost constant.

21 Parking Heater Button

• Not available in the NAR market

22 Display Of The Driver Air Distribution and Temperature Setting
