Air Cleaner Housing: Service and Repair

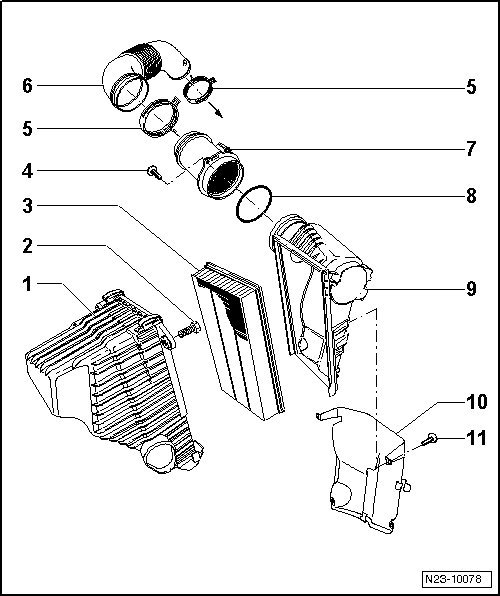

Air Filter Housing Overview






1 Lower Air Filter Housing

2 Bolt

• 10 Nm

3 Air Filter Element

4 Bolt

• 6 Nm

5 Clip

• Remove and install using spring type clip pliers (VAS 5024).

6 Intake Hose

• To the turbocharger.

7 Mass Airflow Sensor (G70)

8 O-ring

• Replace if damaged.

9 Upper Air Filter Housing

10 Heat Shield

11 Bolt

• 6 Nm
