Engine Assembly

Special Tools

Special tools, testers and auxiliary items required

• Support Set (VAS 6131/10)

• Supplementary Set (VAS 6131/12)

• Supplementary Set (VAS 6131/11)

• Supplementary Set (VAS 6131/13)

• Tapered Mounting Pin (VAS 6131/10-2) (Qty: 3)

• Engine and Transmission Holder (VAS 6095)

• Universal Mounting (VAS 6095/1)

• Bracket for V6 TDI Engine (VAS 6095/1-4)

• Lifting Tackle (3033)

• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)

• Lift Arm Ext./Workshop Hoist (VAS 6101)

• Tensioning Strap (T10038)

• Ball Joint Puller (T10187)

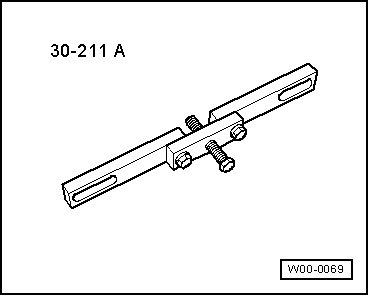

• Bracket (30-211 A)

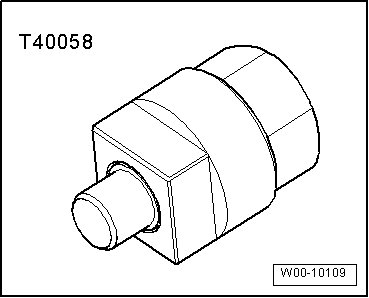

• Socket (T40058)

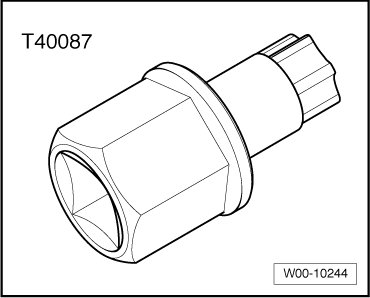

• TORX(R) Socket T60 (T40087)











Special tools, testers and auxiliary items required

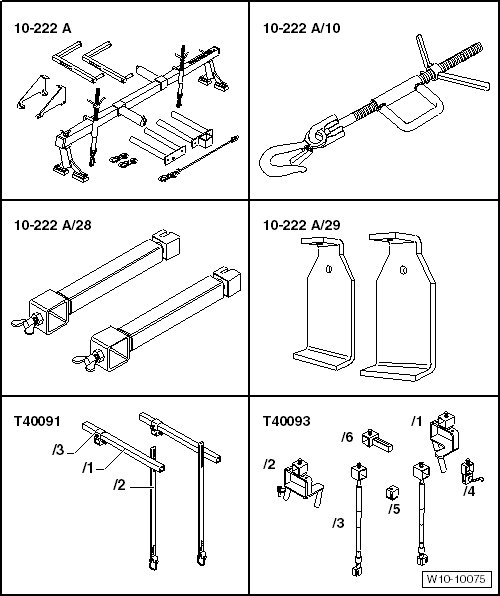

• Engine Support Bridge (10-222 A)

• Bracket with Hook and Spindle (10-222 A/10)

• Adapter (10-222 A/28)

• Adapters (10-222 A/29)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)






Special tools, testers and auxiliary items required

• Used oil Collecting and Extracting Device (V.A.G 1782)

• Step Ladder (VAS 5085)

• Engine Bung Set (VAS 6122)

• Scissor Type Assembly Platform (US) (VAS 6131 A)

• Drip Tray for VAS 6100 (VAS 6208)

• Hose Clip Pliers (VAS 6362)
