Right Camshaft Timing Chain Overview

Right Camshaft Timing Chain Overview

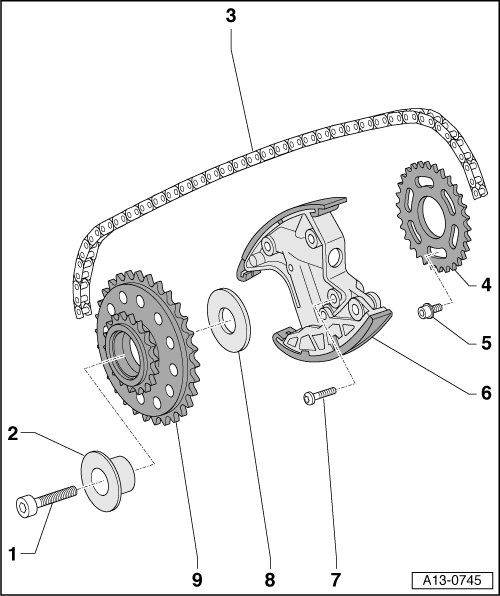

1 Bolt

• Tightening specification, see - item 2 - in the => [ Timing Mechanism Drive Chain Overview ] Timing Mechanism Drive Chain Overview.

2 Pin

• For the drive sprocket.

3 Right Camshaft Timing Chain

• Removing from the camshafts, refer to => [ Camshaft Timing Chain, Removing from Camshafts ] Camshaft Timing Chain, Removing from Camshafts.

• Before removing, mark the rotation direction with paint.

• Removing and installing, refer to => [ Camshaft Timing Chain ] Camshaft Timing Chain.

4 Camshaft Sprocket

• For the intake camshaft.

• Installed position: The side with the lettering faces forward.

5 Bolt

• 23 Nm

6 Chain Tensioner

• For the right camshaft timing chain.

7 Bolt

• 5 Nm + an additional 90° (1/4) turn.

• Always replace.

• Quantity: 3

8 Thrust Washer

• For the drive sprocket.

9 Drive Sprocket

• For the right camshaft timing chain.
