Cylinder Head Assembly: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Puller (T40064)

• Seal Puller - General Usage (2085)

• M10 x 1.25 x 40 Bolt from Seal Installer (3241)

• Assembly Tool (T10053)

• Socket (T40058)

• Compression Tester (V.A.G 1763)






• Dial Gauge Holder (VW 387)






• Dial Gauge 0-10 mm (VAS 6079)











Special tools, testers and auxiliary items required

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Ratchet, Reversible (V.A.G 1331/1)

• Tool Insert AF 19 (V.A.G 1331/5)

• Puller (T10055)

• Socket (T40055)






Special tools, testers and auxiliary items required

• Retainer (3036)

• Puller (T10320)

• Camshaft Fitting Tool (T40094)

• Camshaft Fitting Tool (T40095)

• Camshaft Fitting Tool (T40096)






Special tools, testers and auxiliary items required

• Hinged Socket (3220)

• Valve Seal Removal Tool (3364)

• Valve Stem Seal Driver (3365)

• Valve Cotters Asm/Disasm Device (VAS 5161)

• Guide Plate for 3.0L TDI Engine (VAS 5161/23)

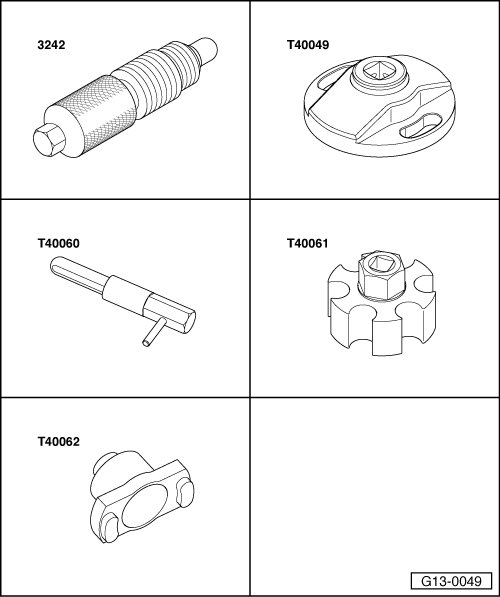

Special tools, testers and auxiliary items required

• Crankshaft Holder (3242)

• Key (T40049)

• Adjustment Pin (T40060)

• Adapter (T40061)

• Adapter (T40062)
