Diagram 47/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

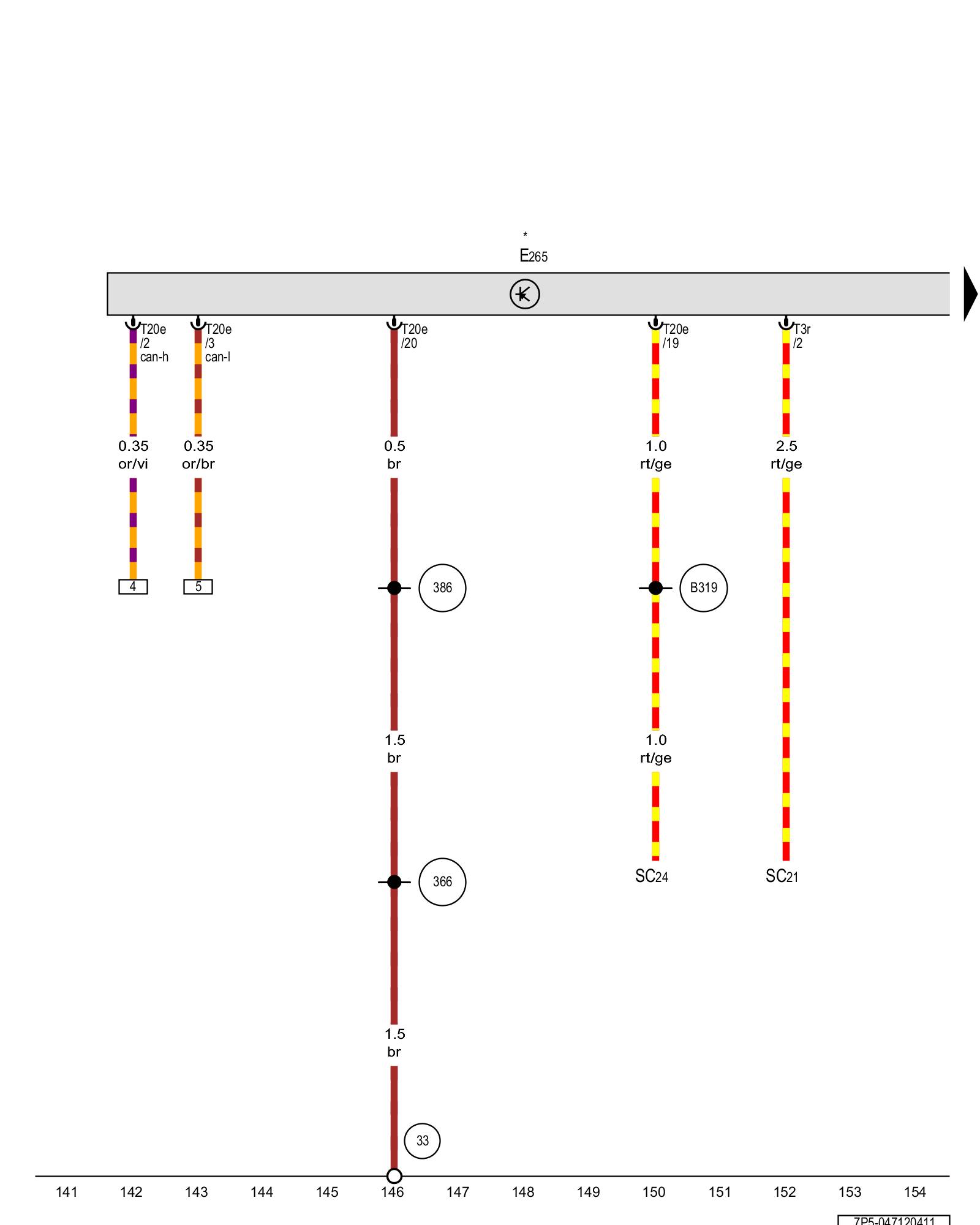

Rear A/C display control head





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E265 - Rear A/C display control head Control Modules in Interior

SC21 - Fuse 21 (on fuse panel C) Locations

SC24 - Fuse 24 (on fuse panel C) Locations

T3r - 3-pin connector

T20e - 20-pin connector

(33) - Ground connection behind instrument panel, right Overview Of Ground Connections in Interior

(366) - Ground connection 1 (in main wiring harness)

(386) - Ground connection 21 (in main wiring harness)

(B319) - Positive connection 5 (30a) (in main wiring harness)

* - only with Climatronic with 4-zone temperature control
