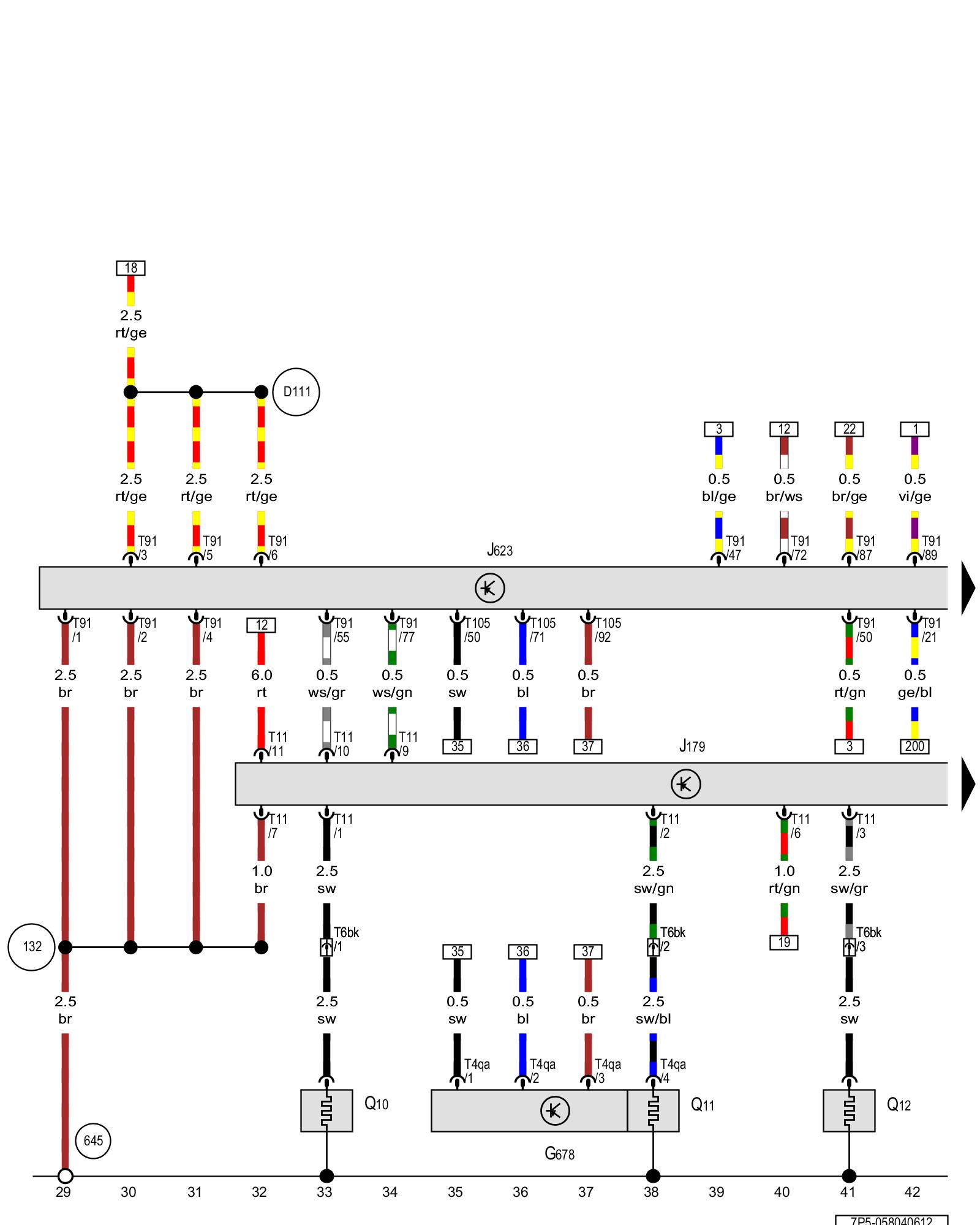

Diagram 58/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Cylinder 2 combustion chamber pressure sensor, Automatic glow time control module, Engine control module, Glow plug 1, Glow plug 2, Glow plug 3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G678 - Cylinder 2 combustion chamber pressure sensor Cylinder 2 Combustion Chamber Pressure Sensor -G678- /Glow Plug 2 -Q11-

J179 - Automatic glow time control module Control Modules in Engine Compartment [1][2]Diagrams

J623 - Engine control module Control Modules in Engine Compartment

Q10 - Glow plug 1

Q11 - Glow plug 2 Cylinder 2 Combustion Chamber Pressure Sensor -G678- /Glow Plug 2 -Q11-

Q12 - Glow plug 3

T4qa - 4-pin connector

T6bk - 6-pin connector

T11 - 11-pin connector

T91 - 91-pin connector

T105 - 105-pin connector

(132) - Ground connection 3 (in engine compartment wiring harness)

(645) - Ground connection 1 on bulkhead Overview Of Ground Connections in Engine Compartment

(D111) - Connection 9 (in engine compartment wiring harness)

Previous Diagram 58/3 (Tracks 15-28)

Next Diagram 58/5 (Tracks 43-56)
