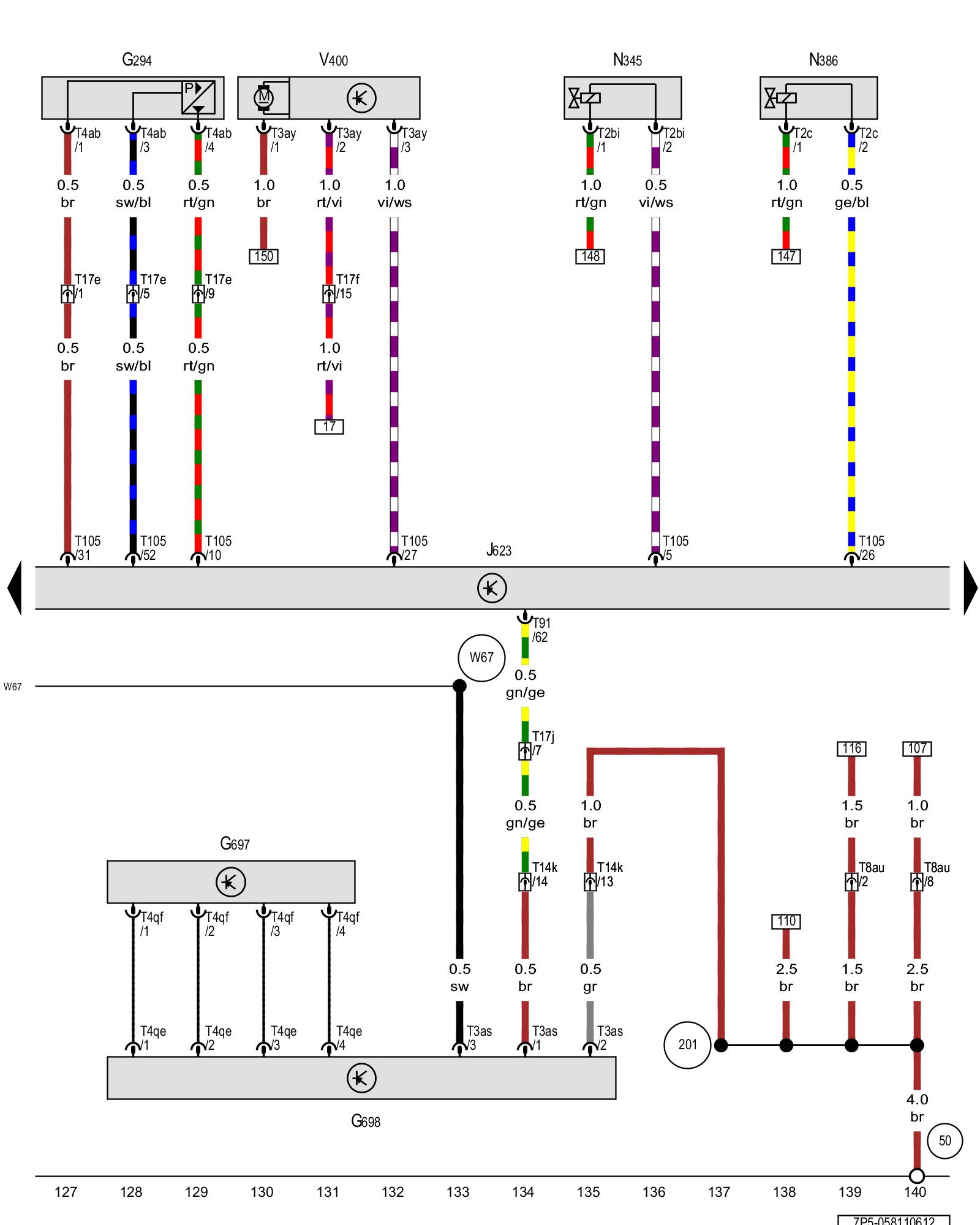

Diagram 58/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake booster pressure sensor, Reducing agent reservoir sensor, Reducing agent reservoir processing unit, Engine control module, EGR cooler switch-over valve, EGR cooling bypass valve, EGR cooler pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G294 - Brake booster pressure sensor Locations Brake Booster Pressure Sensor -G294-

G697 - Reducing agent reservoir sensor Locations

G698 - Reducing agent reservoir processing unit

J623 - Engine control module Control Modules in Engine Compartment

N345 - EGR cooler switch-over valve Locations EGR Cooler Switch-over Valve -N345-

N386 - EGR cooling bypass valve EGR Cooling Bypass Valve -N386-

T2bi - Double connector

T2c - Double connector

T3as - 3-pin connector

T3ay - 3-pin connector

T4ab - 4-pin connector

T4qe - 4-pin connector

T4qf - 4-pin connector

T8au - 8-pin connector Overview: Coupling Stations Inside The Luggage Comp.

T14k - 14-pin connector Overview: Coupling Stations Inside The Luggage Comp.

T17e - 17-pin connector Overview, Coupling Stations Inside The Engine Compartment

T17f - 17-pin connector Overview, Coupling Stations Inside The Engine Compartment

T17j - 17-pin connector Overview, Coupling Stations Inside The Engine Compartment

T91 - 91-pin connector

T105 - 105-pin connector

V400 - EGR cooler pump EGR Cooler Pump -V400-

(50) - Ground connection in luggage compartment, left Overview Of Ground Connections in Luggage Comp.

(201) - Ground connection 5 (in engine compartment wiring harness)

(W67) - Connection 87 (in floor wiring harness)

* - Through May 2011

Previous Diagram 58/10 (Tracks 113-126)

Next Diagram 58/12 (Tracks 141-154)
