Rear Lid Motor 1 -V444- /Sensor in Rear Lid Motor 1 -G745-
Rear Lid Motor 1 -V444- /Sensor in Rear Lid Motor 1 -G745-

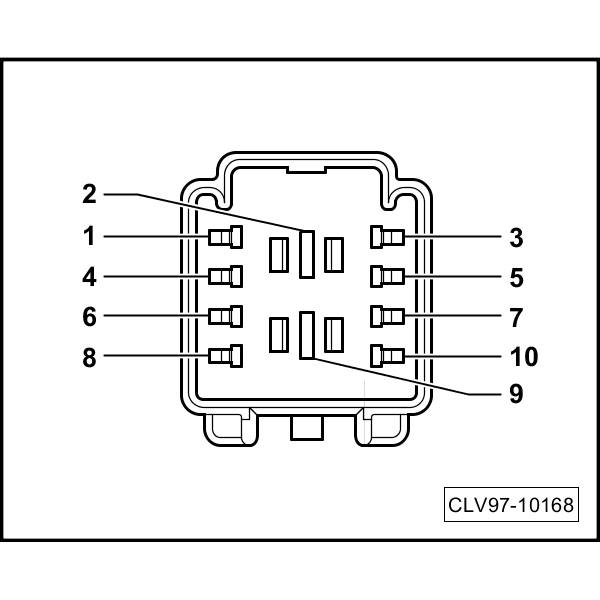

Rear Lid - Connector Views

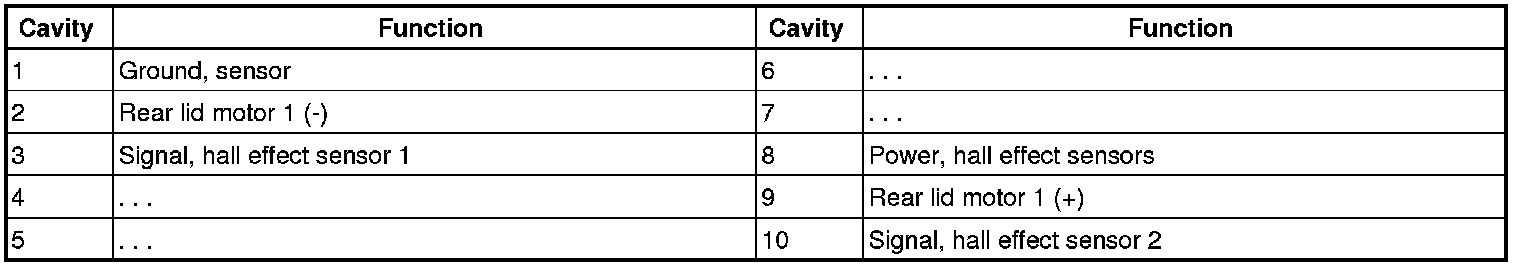

Rear lid motor 1 -V444- /Sensor in rear lid motor 1 -G745-
