Adaptive Suspension Valve Block -NX7-

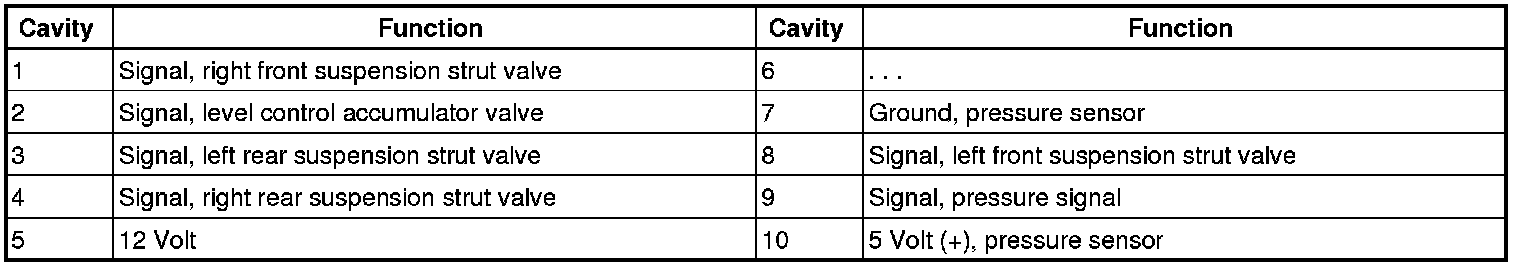

Level Control System - Connector Views

Adaptive suspension valve block -NX7-
