Compressor/Pump, Suspension Control






Level Control System - Connector Views

Level control system compressor motor -V66- / -G290- / -N111-

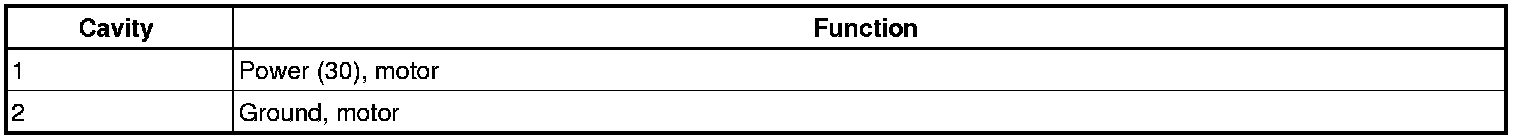

Connector, 2 Pin

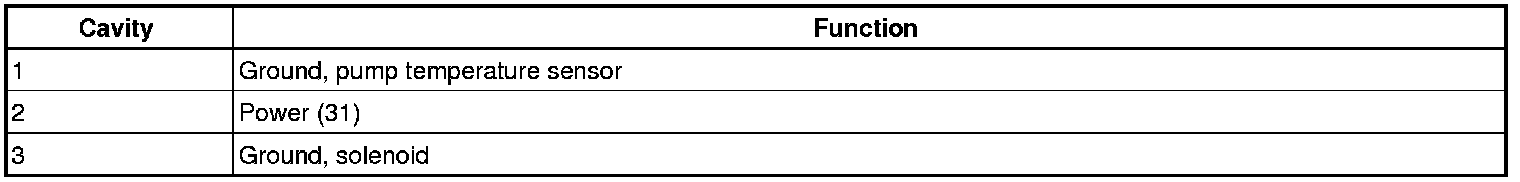

Connector, 3 Pin
