Power Adjustable Steering Column Control Module -J866-






Steering Systems - Connector Views

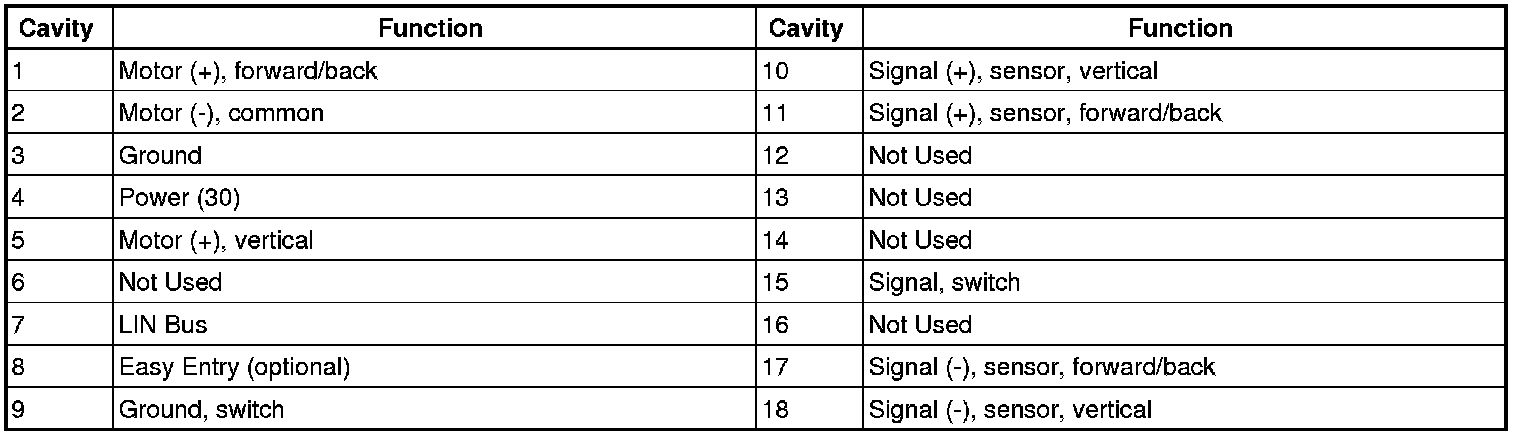

Power adjustable steering column control module -J866-
