Driver/Front Pass Seat Adjustment Control Module -J810- / -J720-






Comfort Systems - Connector Views

Driver/Front passenger seat adjustment control module -J810- / -J720-



Connector, 16 Pin

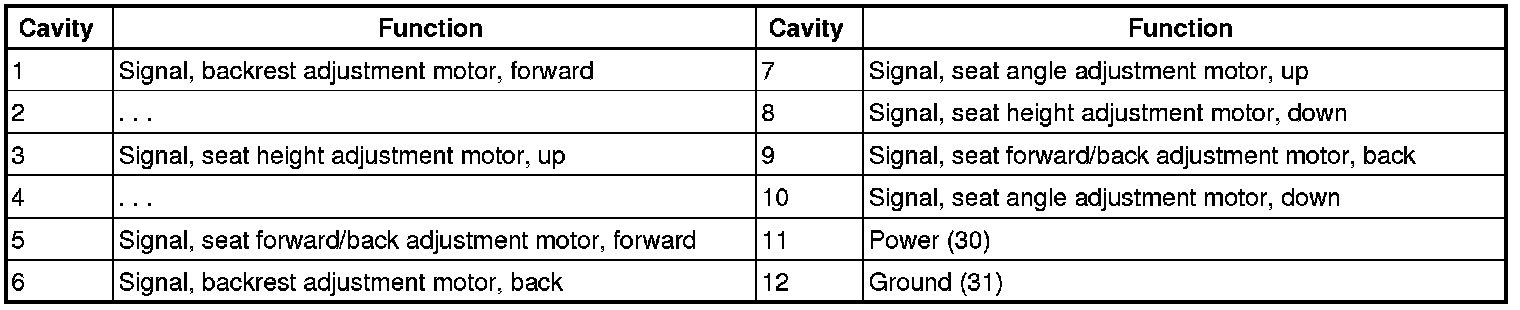

Connector, 12 Pin












Connector, 32 Pin

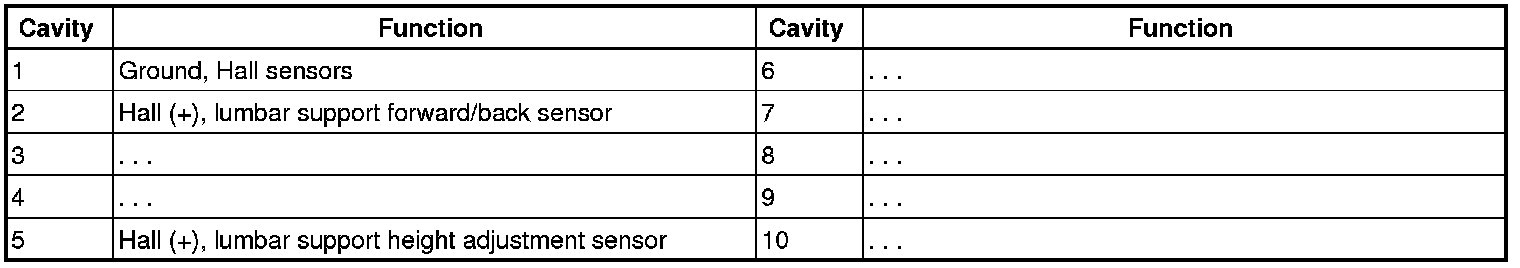

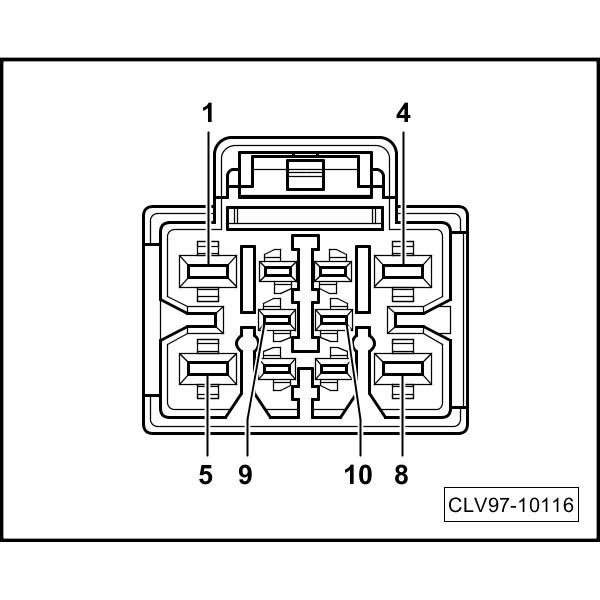

Connector, 10 Pin, T10af/T10ah

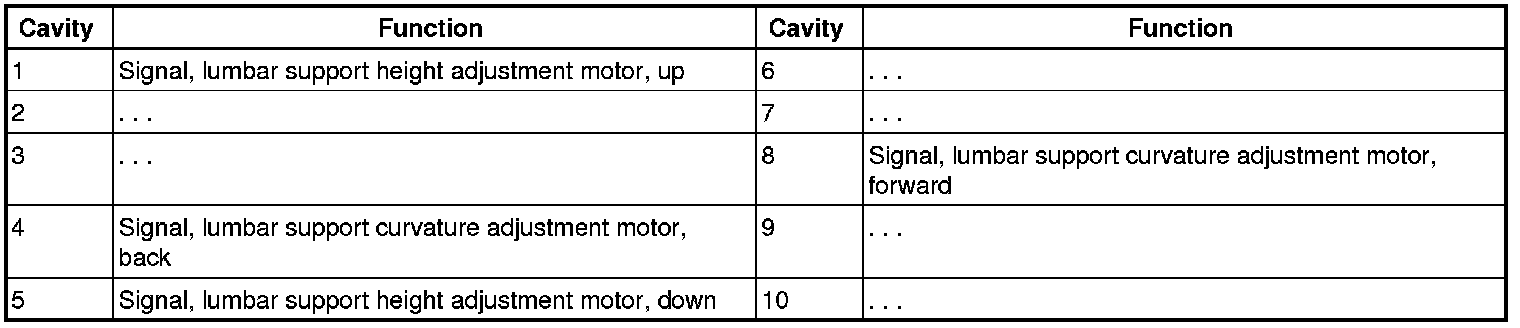

Connector, 10 Pin, T10bg/T10ai
